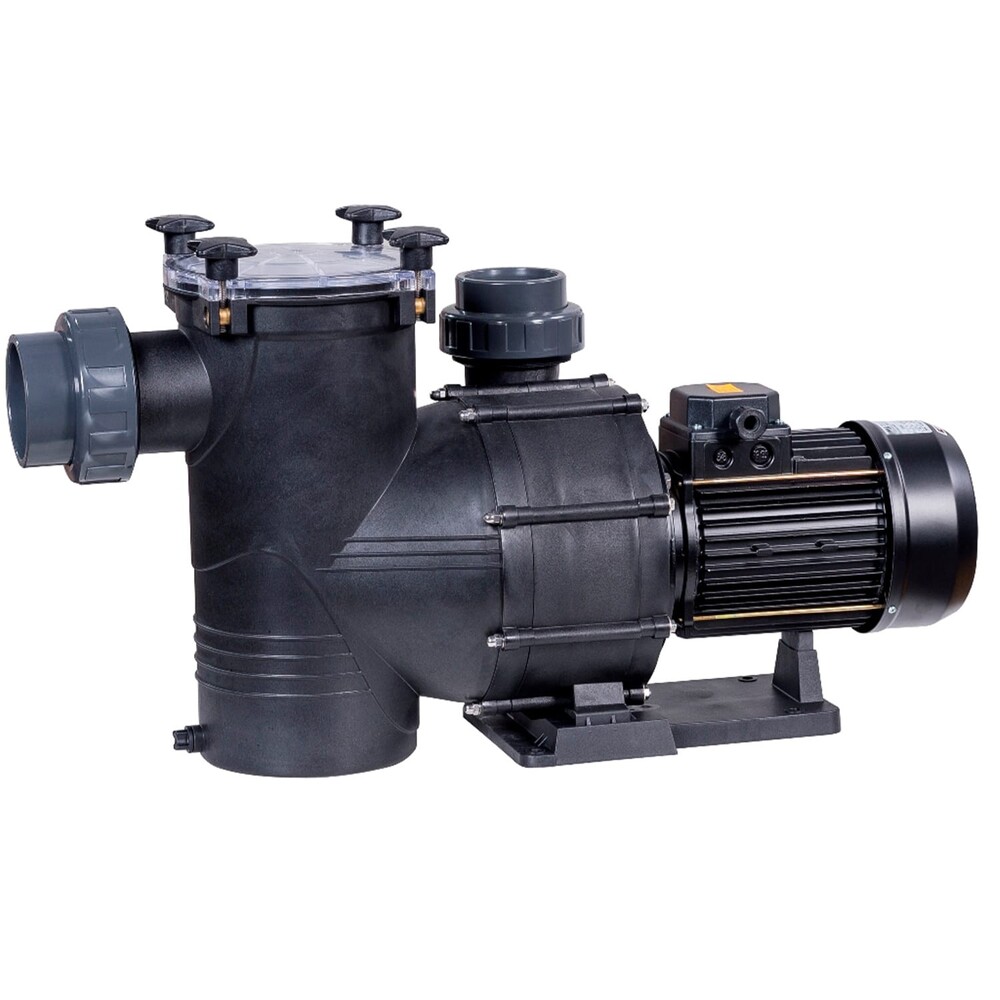

Pool pump Big Discovery
- Self-priming centrifugal electric pump for swimming pools. Self-priming at 2 m.
- Built-in pre-filter of great capacity (8 litres).
- Pre-filter with transparent lid in polycarbonate which allows easy observation of the pre-filter basket. The pre-filter is closed with a knob system of easy accessibility.
- Pump body made in polypropylene reinforced with fibreglass, resistant to the chemical products in the swimming pool, guaranteed to last a long time.
- Mechanical seal in graphite and ceramics.
- Motor shaft manufactured in stainless steel AISI 316L.
- Motor with IP-55 protection, at 2.850 r.p.m. Tension of mains feed at 230/400V-50Hz three-phase (Ask for 400/690V-50Hz versions).
- Possibility of IE2 Efficiency Motors upon request
- Possibility of 60Hz upon request.
- Versions of 3HP, 4HP and 5,5HP.
- Suction connection Ø90 mm, return connection Ø75 mm. Both supplied with bush connections.

Model | A | B | ⌀C | ⌀D | E | F | H | L |
---|---|---|---|---|---|---|---|---|
10075 | 300 | 160 | 90 | 75 | 368 | 320 | 431 | 713 |
10076 | 300 | 160 | 90 | 75 | 368 | 320 | 431 | 743 |
10077 DY550T | 300 | 160 | 90 | 75 | 368 | 320 | 431 | 743 |

Technical data for the Big Discovery pool pump
Model | 10075 DY350T | 10076 DY400T | 10077 DY550T |
---|---|---|---|
Efficiency | 45 m3/h | 63 m3/h | 72 m3/h |
Power supply | 400V | 400V | 400V |
Power | 2,20 kW | 2,90 kW | 4 kW |
Weight | 22 kg | 25 kg | 27 kg |
Warranty | 24 months |
