We will make the bypass to the heat pump for your pool !
When buying a heat pump from our store, add one of the bypasses below to your cart and we will glue it together especially for you and send it with your order - this will make the installation much easier !
*service only valid when pool heat pump is included in the order

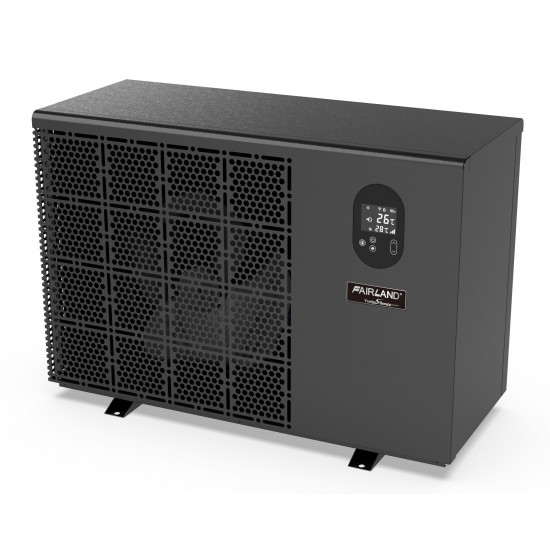

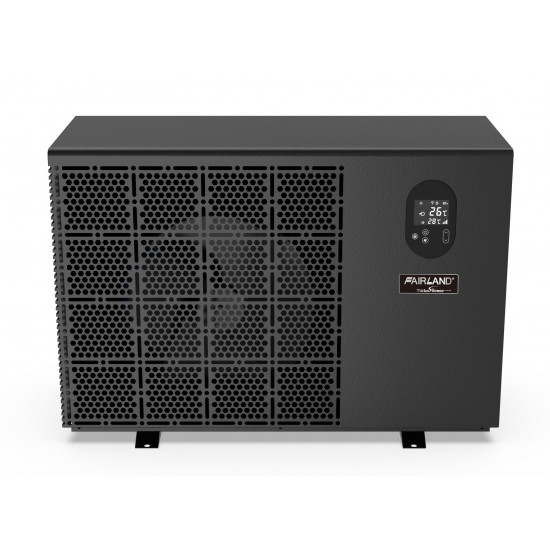

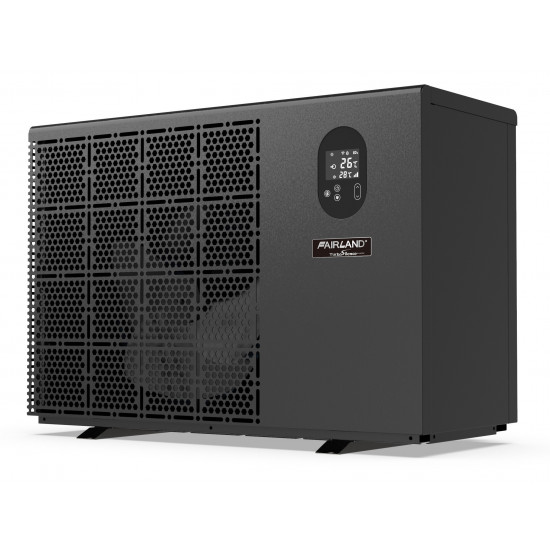

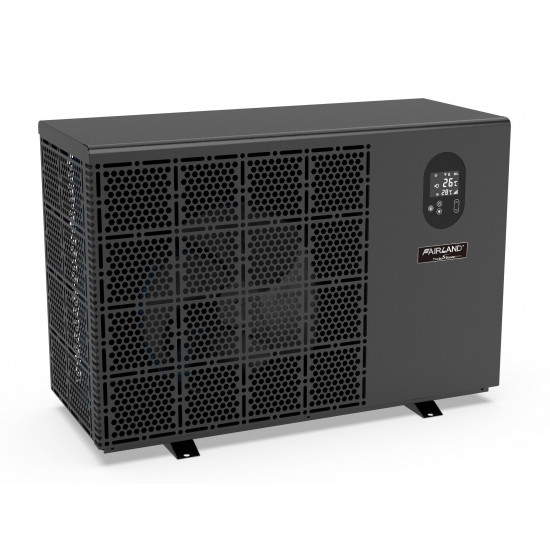

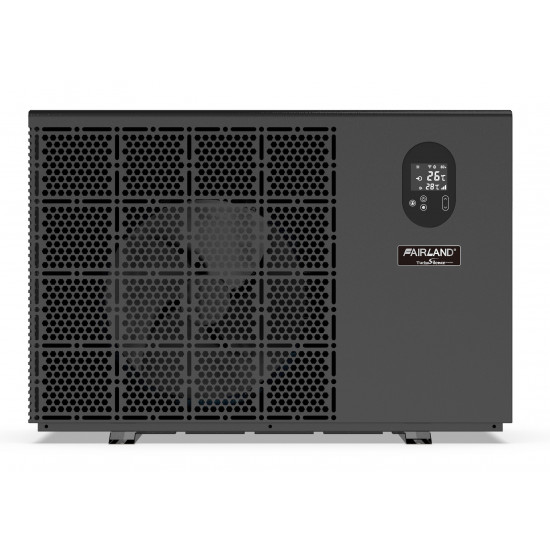

About Fairland INVER X Pumps
FAIRLAND INVER X IXCR are pool heat pumps with full inverter technology. They are more expensive than classic heat pumps, but definitely more energy-efficient, because thanks to the inverters used, they smoothly adjust the efficiency (i.e. revolutions) of both the compressor and the fan to achieve the user's desired pool water temperature. These pumps are designed to operate mainly at average efficiencies of 30%, which is completely sufficient to maintain the desired water temperature throughout the swimming season.
When deciding to buy an INVER X pump, we suggest choosing a larger model, so that the heat pump works most of the time, but at a lower speed. Such operation makes it possible to achieve a high cooling coefficient of performance (COP), 15 times lower noise level, prolongs the life of the pump due to less intensive operation, and reduces operating costs by up to 1/3 compared to On/Off pumps.
Certification by TUV Rheinland
Fairland pool heat pumps are certified after testing by the German certification body TUV Rheinland and fully comply with EU regulations given in EN14511.
Operating principle of INVER X IXCR heat pumps
Inver X are air pool pumps, or more precisely, air-to-water pumps, and use atmospheric air as the lower source (from which heat is extracted). These pumps are "monoblock" pumps, i.e. compact pumps that contain all components in a single housing. This makes the installation of the pumps very simple, and the additional investment costs are the purchase of PVC pipes, fittings, valves and connecting the device to the pool filtration system.
Low flow resistance in the condenser, or titanium heat exchanger, in which the pool water is heated, makes it possible to use the existing pool filter pump.
Low volume, quiet operation
INVER X pool pumps use quiet Mitsubishi compressors and inverter fans.
The operation of the device at maintaining the set water temperature at an efficiency of 30% is about 15 times quieter than the operation of classic On/Off type heat pumps.
Quick adjustment of pool water temperature
The TURBO function allows the Fairland INVER X heat pump to operate at 120% capacity, allowing it to quickly and efficiently heat pool water at the beginning of the season or as needed by the user.
It also has a water-cooling function, allowing the user to enjoy a refreshing swim after time spent in the spa tub or sauna.
The INVER X heat pump is designed to work in conditions down to -15 °C, so using this solution it is possible to use the pool all year round while maintaining a comfortable water temperature.
Average COP
Average COP = 11.3 during the 180-day bathing season assuming P26°C/W26°C/H80 %.
For the On/Off pump, the coefficient remains constant at COP = 5.0 throughout the 180-day period, while for the INVER X pump, after 4 days of water heating (the beginning of the season), the coefficient reaches an average COP = 11.3
Easy control, Wifi module
Each INVER X pump is equipped with a Wifi module, so we can control the operation and temperature using a smartphone.
The operation of INVER X pumps is very simple. On the casing of the pump is installed a controller with an on/off switch, buttons for setting the water temperature, a button Mode and lock settings, and a display that shows the inlet/outlet water temperature, pump performance and the selected mode of operation.
Operation of the unit comes down to turning on the pump and using the buttons to select the desired pool water temperature. Use the Mode button to select the standard Smart mode, Turbo mode or Silence mode. It is recommended to select Silence mode at the beginning of the swimming season, when the water temperature has not yet reached the setpoint.
Which INVER X heat pump for my pool ?
Selection of the appropriate INVER X IXCR heat pump is made on the basis of the volume of the pool, according to the indications in the table "Technical data".
For example, for a pool with a volume of 43 m3 according to the table "Technical data", the appropriate pumps are IXCR36, IXCR46 and IXCR56.
However, the manufacturer recommends that you always choose a larger pump model (in the above example it would be IXCR46). This will allow the pump to work longer at a lower speed (capacity) bringing the following benefits:
- significantly higher COP, thereby providing at least half the
- The cost of heating a swimming pool compared to on/off pumps.
- faster heating of water,
- 15 times lower noise level,
- longer pump life due to less intensive operation.
5 years warranty
The product is backed by an impressive 5-year manufacturer's warranty, demonstrating confidence in the quality and durability of the product. In the event of any faults or problems with its functioning, the manufacturer provides a free repair service.
The Door to Door service will ensure that you don't have to move from your home. We will collect the pump ourselves and send it straight back to your home after service.
Technical specifications of Fairland INVER X heat pumps
Model | IXCR26 | IXCR36 | IXCR46 | IXCR56 | IXCR66 | IXCR80T | IXCR110T |
Recommended pool volume (m3) | 20 - 40 | 25 - 50 | 30 - 60 | 40 - 75 | 55 - 100 | 65 - 120 | 90 - 160 |
Air temperature range (°C) | -15 to 43 | ||||||
Parameters at A26°C/W26°C/H80% - air temp/water temp/humidity | |||||||
Heating capacity (kW) in SMART mode | 8,8 | 11,3 | 14,0 | 18,0 | 22,0 | 27,5 | 35,0 |
Heating capacity (kW) in TURBO mode | 10,5 | 13,5 | 17,0 | 21,5 | 26,0 | 32,0 | 40,0 |
COP in SMART mode | 8,0 | 8,5 | 7,7 | 7,5 | 8,0 | 7,6 | 7,5 |
COP | 15,6 - 7,3 | 15,5 - 7,5 | 16,0 - 6,6 | 15,5 - 6,5 | 16,5 - 7,0 | 16,3 – 6,5 | 16,3 – 6,6 |
COP - at 50% efficiency | 11,8 | 12,0 | 11,5 | 11,5 | 11,6 | 11,5 | 11,4 |
Parameters at A15 C/W26 C/H70% - air temp/water temp/humidity | |||||||
Heating capacity (kW) in SMART mode | 6,3 | 7,5 | 9,5 | 12,0 | 15,0 | 18,5 | 24,5 |
Heating capacity (kW) in TURBO mode | 7,5 | 9,0 | 11,5 | 14,5 | 18,0 | 22,5 | 28,5 |
COP in SMART mode | 5,4 | 5,5 | 5,2 | 5,2 | 5,6 | 5,5 | 5,3 |
COP | 7,1 – 4,9 | 7,5 - 5,0 | 7,5 - 4,5 | 8,0 - 4,7 | 8,0 - 5,1 | 8,0 – 5,0 | 8,1 – 4,8 |
COP - at 50% efficiency | 6,7 | 6,7 | 6,8 | 7,0 | 7,0 | 7,0 | 6,9 |
Parameters at A35 °C/W28 °C/H80% - air temp/water temp/humidity | |||||||
Cooling capacity (kW) | 4,5 | 5,8 | 6,7 | 8,2 | 12,0 | 14,0 | 16,5 |
Noise level at 1 m dB(A) distance | 38,5 – 45,5 | 38,6 - 46,9 | 42,0 - 47,7 | 42,9 - 50,8 | 40,8 - 51,2 | 43,3 – 51,9 | 42,5 – 51,7 |
Noise level at 10 m dB(A) distance | 18,5 – 25,5 | 18,6 - 26,9 | 22,0 - 27,7 | 22,9 - 30,8 | 20,8 - 31,2 | 23,3 – 31,9 | 22,5 – 31,7 |
Compressor | Mitsubishi DC twin rotor rotary inverter | ||||||
Fan motor | DC brushless inverter | ||||||
Heat exchanger (condenser) | Spiral titanium covered with PVC | ||||||
Housing material | Aluminum alloy | ||||||
Power supply | 230 V/50 Hz | 400 V/50 Hz | |||||
Rated power | 0,18-1,53kW | 0,22-1,80kW | 0,26-2,56kW | 0,31-3,08kW | 0,38-3,53kW | 0,46-4,4kW | 0,60-5,94kW |
WiFi | Built in | ||||||
Fuse (A) | 12,0 | 15,0 | 19,0 | 22,5 | 24,5 | 11,3 | 15,0 |
Power supply cable (mm2) | 3x2,5 | 3x2,5 | 3x4 | 3x4 | 3x6 | 5x2,5 | 5x2,5 |
Recommended water flow (m3/h) | 2-4 | 3–4 | 4-6 | 6,5-8,5 | 8-10 | 10-12 | 12-18 |
Pool water inlet/outlet connectors | d50 | ||||||
Refrigerant | R32 | ||||||
Amount of refrigerant in the circuit (g) | 550 | 800 | 1000 | 1200 | 2000 | 2300 | 3200 |
Net dimensions - L - H - W (mm) | 799x432x650 | 893x432x650 | 939x432x650 | 995x432x750 | 1125x429x952 | 1074x539x947 | 1260x539x947 |
Net weight (kg) | 51 | 61 | 65 | 70 | 98 | 111 | 126 |
Warranty | 5 years |
Package contents
Fairland Inver X heat pump
Winter cover
Vibroisolators
Instruction
Built-in WiFi module
Dimensions
A | B | C | D | E | F | G | H |
407 mm | 528 mm | 390 mm | 432 mm | 893 mm | 280 mm | 74 mm | 650 mm |
Main features of the Fairland INVER X:
Certification by TUV Rheinland
Fairland Inver X pumps are certified after testing by the German certification body TUV Rheinland and fully comply with EU regulations given in EN14511.
Low operating costs
The efficiency coefficient of Inver X pumps is COP = 11.5 (50% efficiency) and COP = 16 (20% efficiency). Classic On/Off heat pumps achieve an efficiency factor more than 2 times lower under the same conditions.
Operate at air temperatures down to - 15 °C
Pompy ciepła Inver X zostały zaprojektowane do pracy przy temperaturze powietrza osiągającej -15 C. Pozwala to na korzystanie z basenu cały rok.
Mitsubishi inverter compressor
Inverr X pumps use high-quality rotary compressors with twin DC rotors from Mitsubishi. This ensures high efficiency, quiet operation and long service life
Inverter electric fan motor
Inver X pumps use brushless DC inverter motors. This ensures lower power consumption and generates significantly less noise.

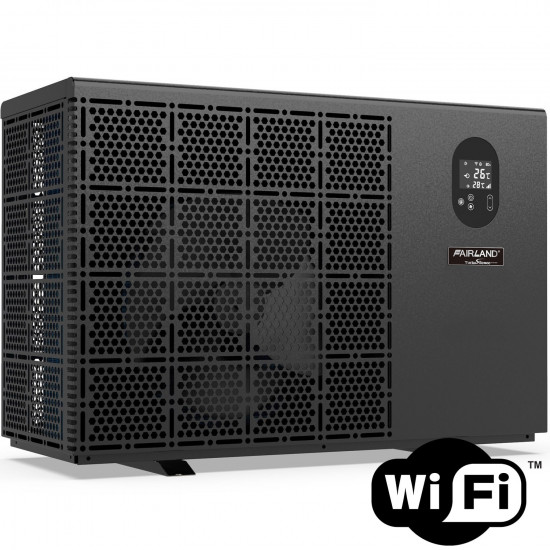

Wifi control
Inver X pumps have a built-in WiFi module as standard, allowing remote management from anywhere at any time via an app
