When buying a heat pump from our store, add one of the bypasses below to your cart and we will glue it together especially for you and send it with your order - this will make installation much easier !
*service only valid when pool heat pump is included in the order

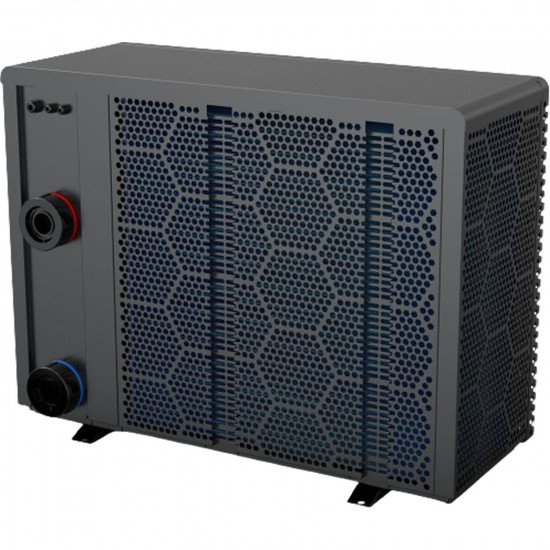

INVERX 20 Full-inverter pool water heating heat pump from FAIRLAND, is based on a control system that perfectly balances the process of compressor operation and heat exchange. The intelligent technology used in the unit perfectly optimizes the gas flow rate, thus maximizing the COP efficiency.
Inver X20 copes even in temperatures as low as -20 ° C, which gives the possibility of year-round heating of pool water.
increases the exchange area by 30% and improves efficiency by 30%.
Fairland pool heat pumps are certified after testing by the German certification body TUV Rheinland and fully comply with EU regulations given in EN14511.
.jpg)
During pump operation, the compressor and fan operate at very low speed. With this solution, noise is reduced to 36.6 dB(A).

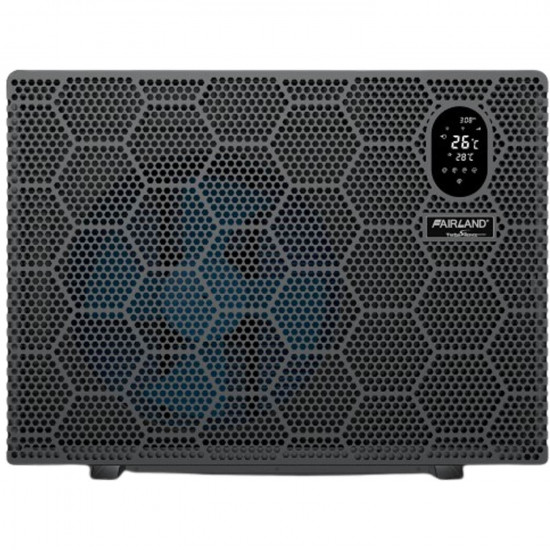

The pump has an intuitive and large display, and operates on the "Tap-To-Wake" principle.
The smart touch panel is an advanced solution that combines modern technology with an intuitive user interface. Thanks to the large display, users can easily and conveniently operate the device's various functions, making it ideal for both home and professional use. The touch panel responds precisely to every touch, ensuring smooth and fast operation. Its intuitiveness means that even those less familiar with technology can quickly learn to use its capabilities. In addition, the large display offers excellent readability and user comfort, regardless of lighting conditions
The heat pump has three modes: Turbo, Smart and Silence.
Each mode has its own advantages depending on the operating conditions:
Heating efficiency: 120% ~ 20%. Fast heating, intelligent optimization according to ambient temperature and water temperature. Energy-saving operation
Heating efficiency: 100% ~ 20%. Intelligent optimization according to ambient temperature and water temperature. Energy-efficient operation
Heating efficiency: 60% ~ 20%. Use at night
On average, the electricity consumption of a heat pump heating pool water will be 5-6 times lower compared to an electric heater. The efficiency of the pool heat pump COP of 6, means that to produce 6 kWh of heat, only 1 kWh of electricity is consumed. For an average sized pool with a capacity of 20 m³, we need to supply about 900 kWh of heat energy during the summer month to maintain the required pool water temperature.
In a plumbing system, the heat pump must be between the filter and any pool water treatment device. In addition, it must be connected on a bypass to regulate the flow through the heat pump. The water flow rate through the pool heat pump is regulated by a valve located at the inlet to the unit and a valve on the bypass. The bypass valves are mandatory and are used to disconnect the heat pump from the system for cleaning the filter system and to drain the heat pump of water for the winter period.
To ensure optimal water flow through the heat pump, operate the valve (5) and valves (7) until the water temperature rise (after passing through the heat pump exchanger) is 3°C (T Inlet-Inlet = ~3). The water inlet and outlet temperatures are shown on the unit's display.
-min.jpg)
This solution makes it possible to remotely control the heat pump, from anywhere via WiFi.
.jpg)
.jpg)
| Model | X20-11C | X20-16C | X20-18C | X20-22C | X20-26CT | X20-40CT |
|---|---|---|---|---|---|---|
A | 402 | 402 | 402 | 511 | 511 | 511 |
B | 539 | 674 | 824 | 700 | 700 | 991 |
C | 389 | 389 | 389 | 498 | 4998 | 498 |
| D | 432 | 432 | 432 | 541 | 541 | 536 |
| E | 910 | 1045 | 1195 | 1072 | 1072 | 1364 |
| F | 300 | 370 | 470 | 550 | 550 | 670 |
| G | 73 | 73 | 73 | 73 | 73 | 73 |
| H | 660 | 660 | 760 | 956 | 956 | 956 |
| Model | X20-11C | X20-16C | X20-18C | X20-22C | X20-26CT | X20-40CT |
|---|---|---|---|---|---|---|
Pool size | 25 - 40 m3 | 35 - 60 m3 | 40 - 65 m3 | 46 - 75 m3 | 55 - 90 m3 | 75 - 120 m3 |
Operating temp. range | - 20°C ~ 40°C | |||||
Parameters at: Air 26°C, Water: 26°C, Humidity 80%. | ||||||
| Heating capacity (kW) in TURBO mode | 11,5 kW | 16,5 kW | 18,5 KW | 22 kW | 26,5 kW | 40 kW |
| Heating capacity (kW) in SMART mode | 9,0 kW | 14 kW | 15,4 kW | 18 kW | 22,5 kW | 35 kW |
| COP | 20,2~7,6 | 20,5~7,4 | 19,6~7,2 | 21~7,4 | 20,5~7,4 | 20,1~7,3 |
| COP at 50% efficiency | 15 | 15,1 | 14,8 | 15,3 | 15,2 | 15 |
| COP at 20% efficiency | 20,2 | 20,5 | 19,6 | 21 | 20,5 | 20,1 |
| Parameters at: Air 15°C, Water: 26°C, Humidity 70%. | ||||||
| Wydajność grzewcza (kW) w trybie TURBO | 7,7 kW | 11 kW | 12,5 kW | 14,8 kW | 18,2 kW | 28,5 kW |
| Heating capacity (kW) in SMART mode | 6,4 kW | 9,2 kW | 10,4 kW | 12,5 kW | 15 kW | 24 kW |
| COP | 8,7~5,6 | 9,0~5,3 | 8,2~5,1 | 9,0~5,4 | 93~5,5 | 8,2~5,0 |
| COP at 50% efficiency | 7,5 | 7,7 | 7,3 | 7,6 | 8 | 7,5 |
| COP at 20% efficiency | 8,7 | 9,0 | 8,2 | 9,0 | 9,3 | 8,2 |
| Parameters at: Air 7°C, Water: 26°C, Humidity 90%. | ||||||
| Heating capacity (kW) in TURBO mode | 6,6 kW | 9,2 KW | 10,5 kW | 11,8 kW | 15,5 kW | 22,8 kW |
| COP in TURBO mode | 7,2~4,9 | 7,2~4,6 | 7,0~4,4 | 7,4~4,5 | 7,2~4,5 | 7,0~4,3 |
| Sound level dB(a) at 1m distance | 37,7-44,8 | 41,0-46,7 | 41,5-47,3 | 41,9-49,5 | 39,7-49,8 | 41,5-50,5 |
| Noise level dB(a) at 1m distance at 50% capacity | 38,8 | 42,7 | 42,5 | 43,3 | 43,1 | 42,5 |
| Sound level dB(a) at a distance of 10m | 17,7-24,8 | 21-26,7 | 21,5-27,3 | 21,9-29,5 | 19,7-29,8 | 21,5-30,5 |
| Compressor | Mitsubishi DC rotary inverter with twin rotors | |||||
| Heat Exchanger | 3D spiral titanium | |||||
| Housing | Aluminum Alloy | |||||
| Power supply | 230V/1 Ph/ 50 Hz | 400 V/3 Ph/ 50 Hz | ||||
| Input power (kW) at air temperature of 15 | 0,15~1,38 kW | 0,20~2,08 kW | 0,25~2,45 kW | 0,27~2,74 kW | 0,32~3,31 kW | 0,6~5,7 kW |
| Input power (A) at air temperature 15 | 0,65~6,00 A | 0,87~9,04 A | 1,09~10,65 A | 1,17~11,9 A | 0,46~4,78 A | 0,87~8,22 A |
| Recommended water flow (m3/h) | 2~4 m3/h | 4~6 m3/h | 4~6 m3/h | 6,5~8,5 m3/h | 8~10 m3/h | 12~18 m3/h |
| Pool water inlet/outlet connectors (mm) | d 50 | |||||
| Net weight (kg) | 63 | 72 | 73 | 82 | 111 | 147 |
| Warranty | 5 LAT | |||||
We provide warranty as well as post-warranty door-to-door service for FAIRLAND pool pumps.
When you buy from our store, we will pick up the heat pump from you by courier and resend it to you under warranty (free of charge) as well as after warranty.
