Swimming pool inverter pump INVERPRO Aquagem
The latest INVERPRO pump combines full inverter technology with a spiral hydraulic system and brushless motor. It provides intelligent operation and precise pump control from 30 to 100% capacity to meet a variety of applications such as filtration and backwashing, and reduces noise levels by more than 30 times. It also reduces energy consumption by up to 90%
INVERPRO has an automatic inverter mode. Once the water flow is set, the pump can automatically detect the pressure in the system and adjust the operating capacity to ensure a constant flow. If necessary, the output can be set manually.
External control
Modbus RS485, digital input, analogue input, relay output. Allows the pump to be operated by other devices.
WI-FI
Allows control from anywhere, using the app.
Soft start - full protection of the electrical installation
By starting its operation at the lowest speed, the pump does not put a strain on your home's electrical system.
What characterises InverSilence technology:
Technologia Full Inverter
The inverter drive ensures intelligent operation and precise control of pump performance. Reduces energy consumption by up to 90%
Spiral hydraulic system
The noise generated during pump operation is isolated by the spiral structure of the hydraulic system, making the pump significantly quieter than others on the market.

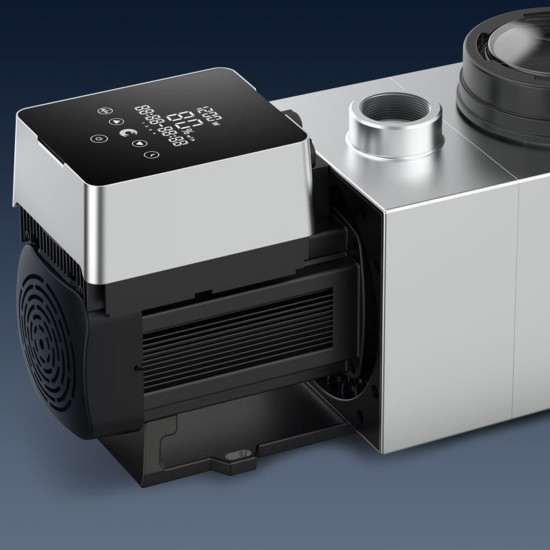

Brushless DC motor
Brushless DC motor for lower noise, higher efficiency and longer life
Comfortable relaxation and rest
For years, people have had to endure noise levels of up to 70 dB generated by their traditional pool pumps in order to perform backwashing. Aquagem has developed a solution to offset this nuisance and has launched InverSilence technology. This is the first such technology from a manufacturer that allows for silent operation. InverSilence precisely controls every component of the pump to ensure comfortable and quiet operation.
The quietest pump on the market
30 times quieter than ON/OFF pumps
An average of 36 dB(A) at a distance of 1m

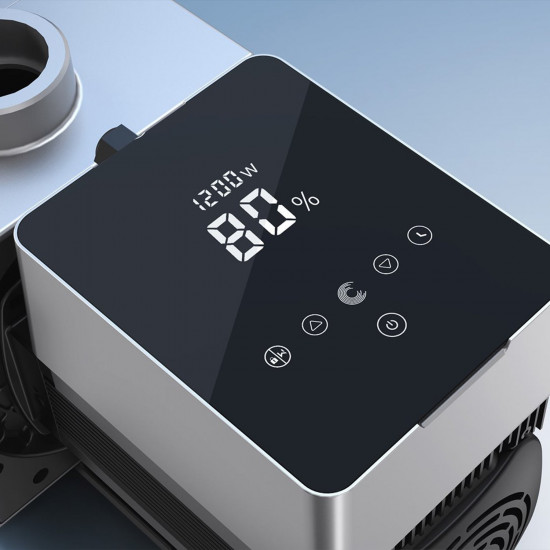

INTUITIVE TOUCHSCREEN
AI/MI - automatic or manual mode:
- AUTO INVERTER MODE
- -Automatic adjustment of operating capacity;
- MANUAL INVERTER MODE
- -Manual adjustment of operating capacity.
Possibility of reading energy consumption
Reading the current flow
Backwashing without much effort
Dimensions of the pool inverter pump INVERPRO AQUAGEM:
Technical data of the pool inverter pump INVERPRO Aquagem
Model | IP20 | IP25 | IP30 |
Power supply | 230 V | ||
Power P1 | 0,07~0,77 kW | 0.08~1.05 kW | 0,09~1,40 kW |
Capacity MAX | 25 m3/h | 27,5 m3/h | 31 m3/h |
High max | 12,5 m | 15 m | 18 m |
Flow rate 30%~100%: | |||
8m | 6,15 - 20,5 m3/h | 7,7 - 25,6 m3/h | 9,3 - 31 m3/h |
10m | 4,5 - 15 m3/h | 6,6 - 22 m3/h | 8,1 - 27 m3/h |
Connections size | Suction: 2'' | ||
Operating temperature | up 0 to +42 °C | ||
Relative humidity | 45 to 90 % | ||
Guarantee | 24 months |
Pompa INVERPRO
Oszczędna praca
Inverter pool pumps AQUAGEM
InvertPRO
InvertECO
Model | IP20 | IP25 | IP30 | DE14 | DE18 | DE22 |
P1 | 0,75 kW | 1,05 kW | 1,4 kW | 0,6 kW | 0,75 kW | 1 kW |
Max. height (m) | 18 m | 20 m | 21 m | 14 m | 16 m | 18 m |
Flow ~ 10m | 15 m3/h | 21 m3/h | 26,5 m3/h | 9 m3/h | 14 m3/h | 18 m3/h |
Flow ~ 8m | 19 m3/h | 24,5 m3/h | 29,5 m3/h | 14 m3/h | 18m3/h | 22m3/h |
FULL INVERTER Technology | √ | √ | ||||
Auto Inverter Mode | √ | × | ||||
Manual Inverter Mode | √ | √ | ||||
Noise (dBA~1m) | 32,4 | 36 | ||||
Energy saving | 15X | 10X | ||||
IE4 DC Brushless motor | √ IE4 | √ IE4 | ||||
Controller | Touch screen | Touch screen | ||||
Cable length | 3 m | 3 m | ||||
Wi-fi Application | √ | × | ||||
Digital input | √ | × | ||||
Modbus RS485 | √ | × | ||||
Analogue input | √ | × | ||||
Relay output | √ | × |
