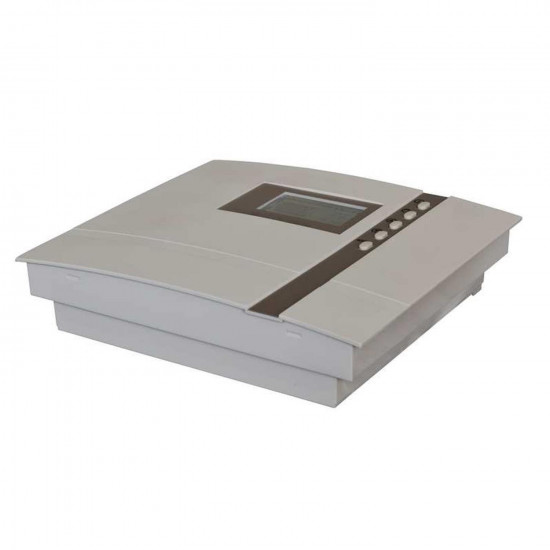

EOS Econ H1
Electronic controller for dry and steam saunas (for sauna heaters with steamer) with LCD display and multilingual menu. Affordable model with all necessary control functions for private sauna cabins.
Modern, slim housing for surface or semi-cavity installation. The depth of the housing is only 58 mm. Cable connectors are located at the rear.
Advantages:
- LCD display,
- Easy operation with 12-language menu (DE, EN, FR, ES, IT, NL, RU, PL, FI, SE, SLO, CZ),
- Quick, easy installation and configuration,
- Modern, slim housing with a thickness of only 58 mm.
- Time-based humidity control, adjustable in 10 steps.
- Light and fan control up to 100 W
- Data retention after power loss (24 hours)
Installation Instructions:
Technical Data:
Model | Voltage | Maximum power of the furnace | Possibility of power extension | Temperature control range | Heating time | Controller dimensions |
EOS Econ H1 | 400 V | 9 kW | No | 30 - 115°C | 6 h | 22 x 25 x 5,8 |
EOS Econ H2 | 400 V | 9,0 kW resistive load, vaporizer max. 3 kW | Yes | 30 - 115°C Dry mode | 6 h, 12 h, 30 min. afterheating | 22 x 25 x 6,7 |
EOS Econ H3 | 400 V | 9,0 kW resistive load, vaporizer max. 3 kW | Yes | 30 - 115°C Dry mode 30 - 70°C Bi-o mode | 6 h, 12 h, 30 min. afterheating | 22 x 25 x 6,7 |
EOS Econ H4 | 400 V | 9,0 kW resistive load, vaporizer max. 3 kW | Yes | 30 - 115°C Dry mode 30 - 70°C Bi-o mode | 6 h, 12 h, ciągły czas pracy | 22 x 25 x 6,7 |
The control unit is not suitable for outdoor use!
The device can only be used indoors and must not be exposed to weather conditions.
