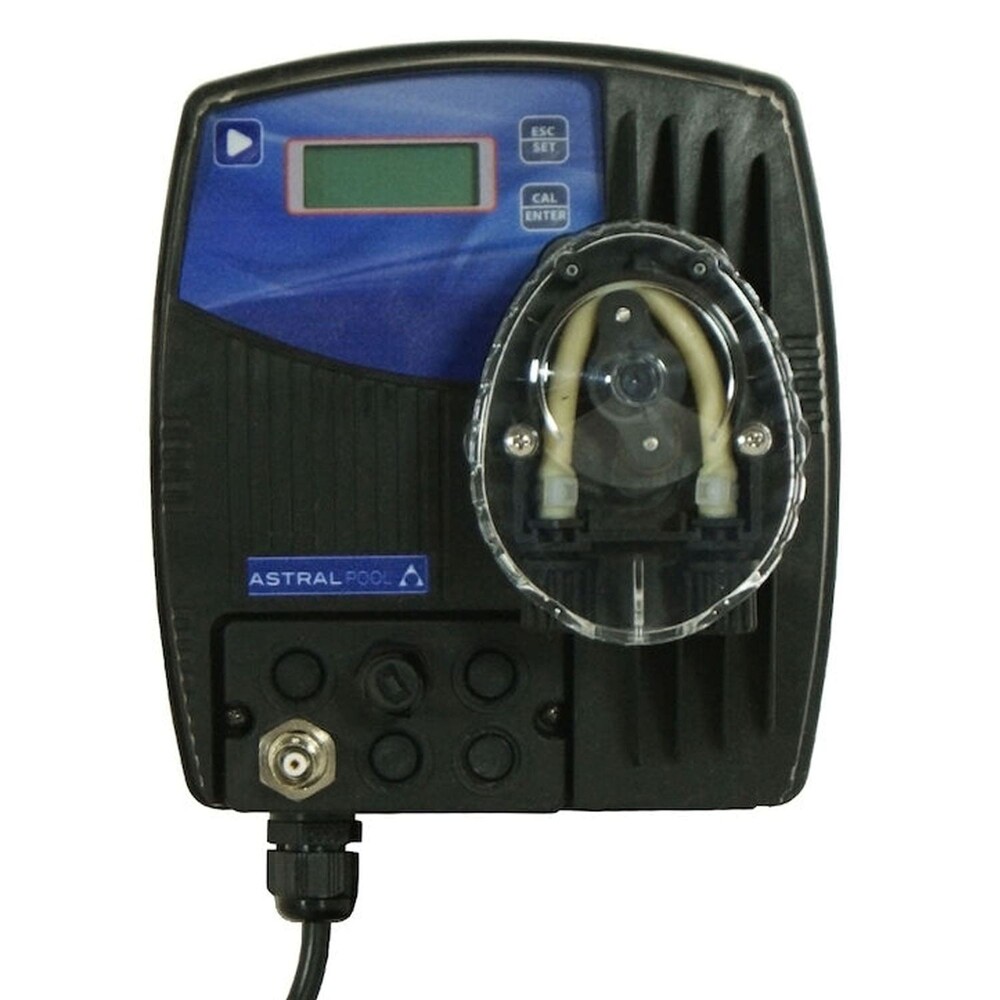

Peristaltic dosing pump for pool CONTROL BASIC NEXT ASTRALPOOL
Automatic chlorine dosing pump. The device controls its flow in the pool on the basis of electrode readings
The compact design saves space and the unit itself is designed to reduce the possibility of faults and can last for many years.
Additional data:
- Backlit display
- Quiet and easy to use
- Menu in 5 languages (EN, IT, ES, DE, FR)
- RX probe included
- Material: PP
- Degree of protection: IP65
- Tube material: PP/PVC
Technical data:
Model | CONTROL BASIC NEXT |
Product code | 66163 |
Capacity | 1,5l/h |
Measurement range RX | 0 ÷ +1000 mV |
Pressure | 1,5 bar |
Power supply | 230 V |
Weight | 1 kg |
ZAWARTOŚĆ OPAKOWANIA:
Pump foot filter
Peristaltic dosing pump with pH measurement CONTROL BASIC NEXT 1,5 l/h
Duckbill valve
Mounting screws 6mm
Hose PVC, 2m
Hose PE, 3m
Electrode RX
Buffer solution
Reducer for injection valve
Tapping saddle
Probe-socket
Further information:
Measuring and dosing stations are equipped with measuring probes that continuously monitor water parameters and automatically dose chemicals if necessary.
Probes need regular calibration and replacement!
Installation diagram:
The way a peristaltic pump works:
Fluid is drawn in through the inlet valve, by alternately crushing and relaxing the flexible hose with rollers moving around the perimeter, under pressure it pushes substances evenly into the entire pool pipe system.
Only the pump hose is in contact with the fluid. This excludes the risk of contamination of the fluid by the pump or vice versa.
This solution ensures that other pump components are not subjected to wear. The hose is in an easily accessible location, so replacing it is not the least bit difficult.
What is Redox?
This is an indicator that determines the level of disinfectant and pH in the water. By indicating the Redox value, the dosage of disinfectant can be adjusted accordingly.
Redox levels depend on several factors
- The pH level in the water:
- Low pH levels, increases Redox
(this can lead to damage to your pool as well as its equipment); - High pH level, reduces Redox
(results in unpleasant odours, irritation of the skin and mucous membranes, the appearance of scale deposits).
- Low pH levels, increases Redox
- The level of disinfectant:
- Low level of disinfectant, reduces Redox;
- High level of disinfectant, lowers Redox.
