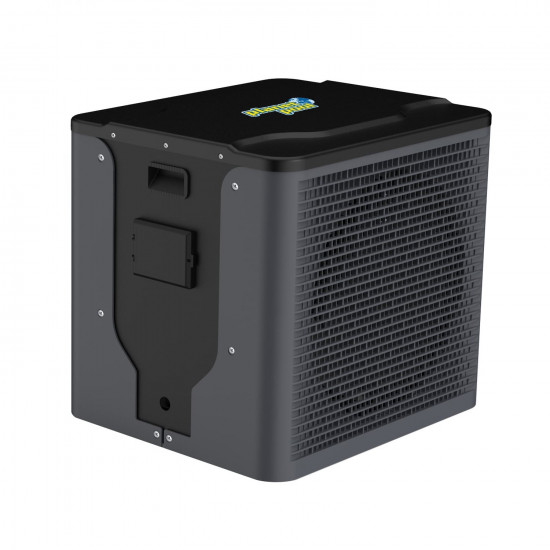

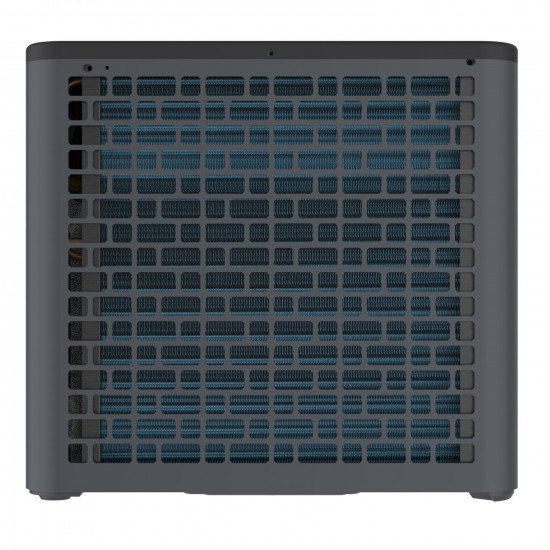

Mini pool heat pump 12m3 SMALL PLANET 3 kW
Mini pool heat pump 12m3 SMALL PLANET 3 kW
Mini pool heat pump 12m3 SMALL PLANET 3 kW
Mini pool heat pump 12m3 SMALL PLANET 3 kW
Mini pool heat pump 12m3 SMALL PLANET 3 kW
Mini pool heat pump 12m3 SMALL PLANET 3 kW

Mini pool heat pump 12m3 SMALL PLANET 3 kW

TEP0001_K
1,999.00 zł 2,299.00 zł -300.00 zł
Lowest price within 30 days before promotion: 2,299.00 zł (-13%)
Time left
Secure Payments
wysyłka 24h
Odbiór osobisty w siedzibie
Odbiór osobisty w siedzibie
ul. Graniczna 59, Chorzów, Poland
Free!
Przesyłka kurierska DPD
Przesyłka kurierska DPD
Courier delivery | Add 3-5 days
36.00 zł
Przesyłka paletowa
Przesyłka paletowa
Pallet transport | Add 3-5 days
90.00 zł

Professional consultantsPool technology specialists
Door 2 Door serviceWe take care of all the paperwork
100% Polish warrantyEasy and fast procedure
Authorised dealerYou are buying first hand

Description

Mini pool heat pump PLANET POOL

The PLANET POOL mini heat pump provides reliability and versatility and has been manufactured to strict manufacturing standards.

A heat pump is the best solution for heating pool water. It is extremely efficient and environmentally friendly and will ensure comfortable swimming conditions throughout the season, and extend the season by several months

A pool heat pump is a system that uses heat energy from the environment to heat the water in your pool. Its operation is based on the principle of converting heat energy from one medium to another using a small amount of electricity. As a result, even on colder days, the heat pump is able to heat the water efficiently, keeping it at the optimum temperature for swimming.

Pompa ciepła PCP POOLSYSTEM

Features of PLANET POOL mini pool heat pump

Flexible installation

The device can be installed outdoors

Silent operation

The unit consists of an efficient rotary/spiral compressor and a quiet fan motor to guarantee quiet operation.

Advanced control

The unit contains a control microcomputer that allows all operating parameters to be set. The operating status can be displayed on the LCD display of the wired controller. A remote control can be selected as an option in the future.

Sustainability

The heat exchanger is made of PVC and titanium pipe, which can withstand prolonged exposure to pool water.

Pompa ciepła PCP POOLSYSTEM

Savings from heat pump heating

The electricity consumption of a heat pump heating pool water will be on average 5-6 times lower compared to an electric heater. With a pool heat pump COP efficiency of 6, only 1 kWh of electricity is consumed to generate 6 kWh of heat. For an average sized swimming pool with a capacity of 20 m³, we need to supply around 900 kWh of heat energy per summer month to maintain the required pool water temperature.

Control via Aqua Temp app

All pool heat pumps are equipped with a Bluetooth module so that various parameters can be changed and controlled remotely, including

  • ON/OFF
  • setting the pool water temperature
  • information on the current operating mode of the heat pump
  • setting the pump operating time
Aplikacja pompy ciepła PCP
Aplikacja POOLSYSTEM PCP
Aplikacja POOLSYSTEM PCP
Pompa ciepła PCP POOLSYSTEM

Easy installation and operation

Pumps do not require bypass

Just put in the extrusion

Intuitive digital controller

Podłączenie basenowej pompy ciepła

Plugging in a socket - that's all that separates you from enjoying hot water in your pool. The pump is a "Plug & Play" device, which means that no special installation or connection to the mains is required.

The unit is supplied with the main unit and water unit only; the other components in the illustration are essential parts for the water system, supplied by the users or installer.

  • When using for the first time, carry out the following steps: Open the valve and fill with water.
  • Make sure the pump and the water supply line are filled with water.
  • Close the valve and start the appliance.

Pompa ciepła PCP POOLSYSTEM

Technical data for Pool Planet pool heat pumps

ModelTEP0001TEP0002

Pool size

up to 12 m3up to 25 m3

Ambient temperature

0-43 °C

Water temperature

15-40 °C

Performance
Heating
(27/℃)

3 kW
10236 Btu/ h
5 kW
17060 Btu/ h
Heating power0,62 kW0,98 kW
COP4,85,1
Performance
Heating
(15/12℃)
2 kW
6824 Btu/ h
3,3 kW
11260 Btu/ h
Heating power0,56 kW0,89 kW
COP3,573
Power supply220-240V~50Hz
Power input0,93 kW1,06 kW
Number of compressors1
compressorrotatable
Number of fans1
Fan power25 W
Vent speed800 RPM
Direction of rotationhorizontal
Noise48 dB(A)50 dB(A)
Water connection32/ 38 mm
Water flow0,7 m3/ h1,8 m3/ h
Water pressure1 kPa1,5 kPa
Guaranteeyears

Heat pump dimensions

Wymiary pompy ciepła POOLSYSTEM PCP

Contents of the package

POOLSYSTEM PCP

Heat pump

POOLSYSTEM PCP

hose sleeve

POOLSYSTEM PCP

2 x 2'' adapter for INTEX BESTWAY hose

POOLSYSTEM PCP

2 x 2'' gasket for INTEX BESTWAY hose

POOLSYSTEM PCP

Anti-vibration pads

POOLSYSTEM PCP

RCD power cable

POOLSYSTEM PCP

Instruction manual in Polish

Need help?

If you have not found the answer to your inquiry, please use the form below and write how we can help you?. We provide quick contact and comprehensive service.

Team Poolsystem.pl
Tomasz Tomkowicz

Pool Technology Specialist

Thank you for reading our article, if you have more questions or need more specialized help - write to me using the form.

Product Details

Pool size
up to 30 m3
Power
7 kW
Heat pump type
inverter pump
Power supply
230V - 1 phase
