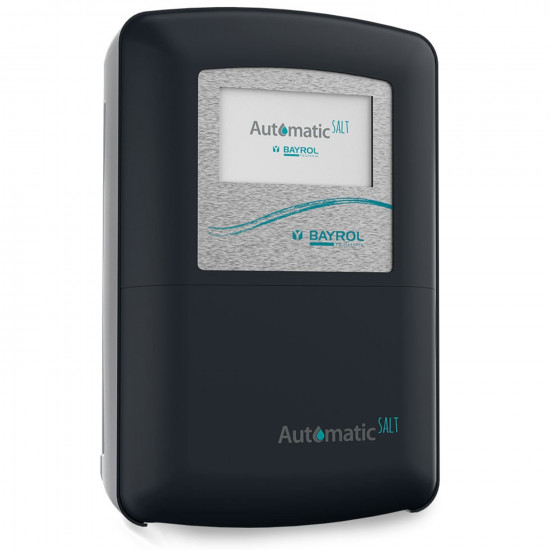

Salt electrolyser Automatic Salt AS5 BAYROL

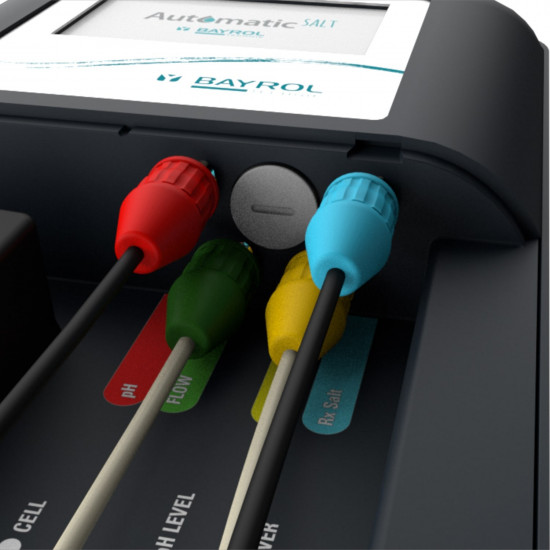

Automatic SALT's fully automatic salt electrolysis system ensures excellent water quality all year round. The cell design and Smart&Easy connector makes installation extremely simple. The entire system is efficient, intuitive and durable.

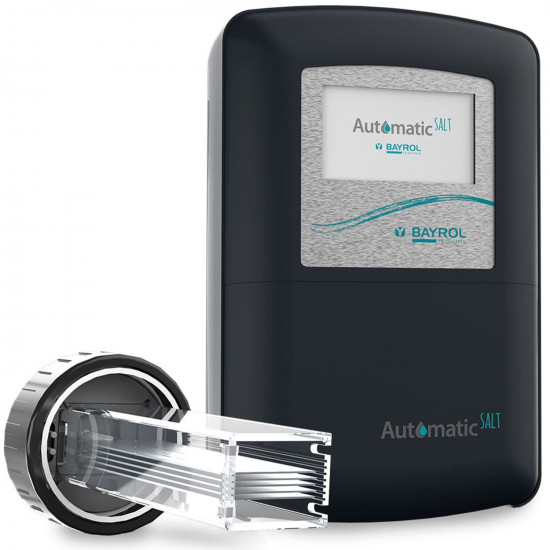

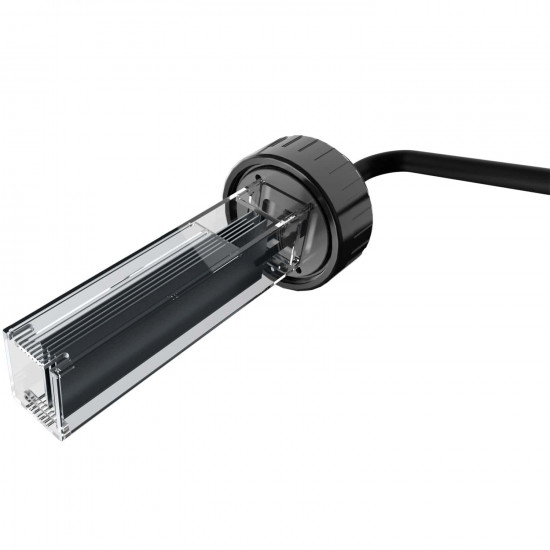

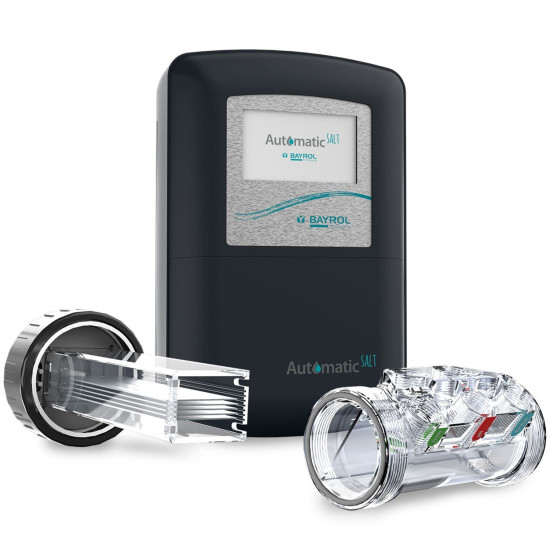

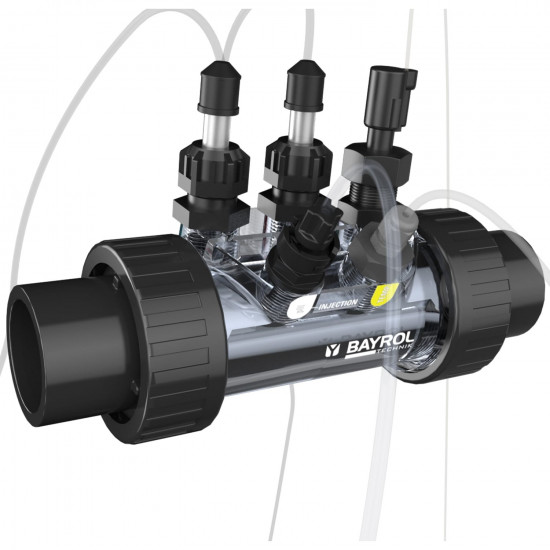

Automatic SALT combines the expertise and many years of experience of BAYROL Technik in a salt electrolysis system designed from the ground up. Among other things, it includes a new high-performance electrolysis cell and an analytical and dosing chamber to ensure excellent water quality at all times.
Intuitive Interface with WiFi

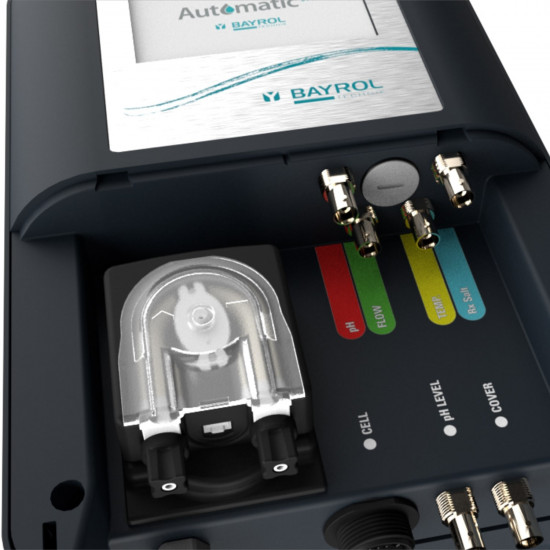

A streamlined user interface makes setting up Automatic SALT as simple as possible. The salt electrolysis system not only handles the production of chlorine from the salt dissolved in the water, but also measures the redox potential to ensure a constant disinfectant level. In addition, Automatic SALT measures and regulates the pH value.
An integrated WiFi module enables convenient operation of the device via a newly developed mobile app or the BAYROL web portal

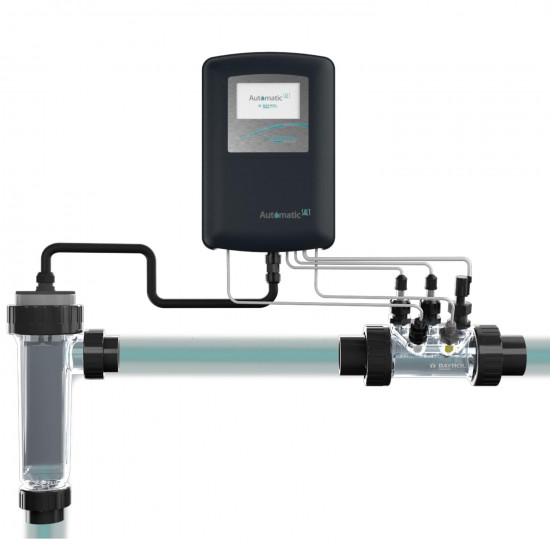

Diagram of electrolysis system installation
Although the technology used makes the unit easy to install, the manufacturer recommends that the installation and commissioning of the automatic SALT must be carried out by an experienced installer. Carefully read the unit's instruction manual to familiarise yourself with its operation, and pay particular attention to the regulations and safety instructions.
The salt electrolyser is incorporated into the end of the pool water circuit after the filtration equipment and the pool heating system.
Device specifications
Display | 4,3" kolorowy ekran dotykowy TFT |
Salt level | 1.5 - 40 g/l (sea water ready) |
Modes of operation | Auto, Auto Plus, Constant Production, Safe, Pause, Boost |
Automatic cleaning | Adjustable polarity inversion, cycles from 1 to 24 hours |
Flow | Horizontal installation: 4.5 m³/h – 30 m³/h; Vertical installation: 5.5 m³/h – 30 m³/h |
Flow control | Paddle flow switch, gas detector in the cell |
Electrolysis electrode cable length | 2 m |
Sensor cable length | 2,5 m |
Max. pressure | 3,5 bar |
Electrode material | Titanium, ruthenium/iridium coating |
Temperature measurement | PT1000 sensor, PVC, BNC |
pH measurement | Combined pH sensor, BNC |
Redox measurement | Combined redox sensor, BNC |
Salinity measurement | Titanium electrodes for conductivity measurement (accuracy of approx. 5 %) |
WiFi module | Yes |
Guarantee | 24 months |
Contents of the package
1 Automatic SALT unit 2 Dosing hose PE 3 Suction hose PVC 4 Temperature sensor 5. dosing valve (injection) 6. electrode holders x2 7. foot valve with filter 8. bolt kit for wall mounting 9. container cap with hole for PVC suction line | 10. pH electrode 11. redox electrode 12. chlorine electrode 13. Smart&Easy connector 14. vane flow sensor 15. electrode cleaning fluid 16. redox buffer solution 465mV 17. pH buffer solution |
Installation Automatic Salt
How Automatic Salt works
Product presentation
