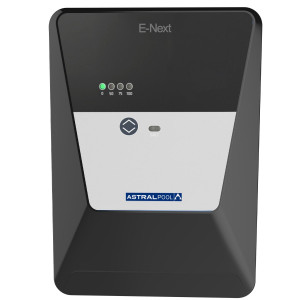

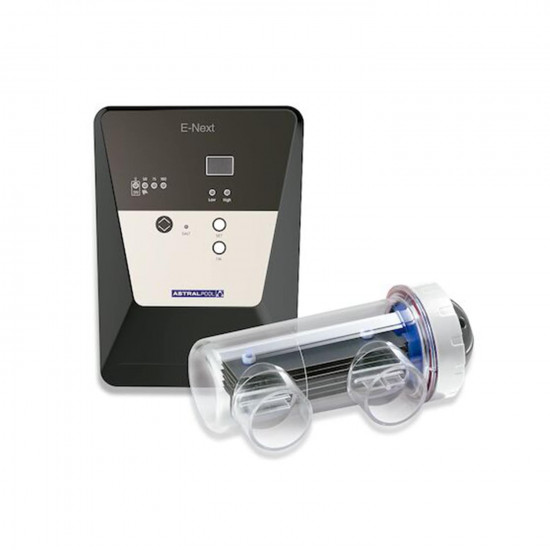

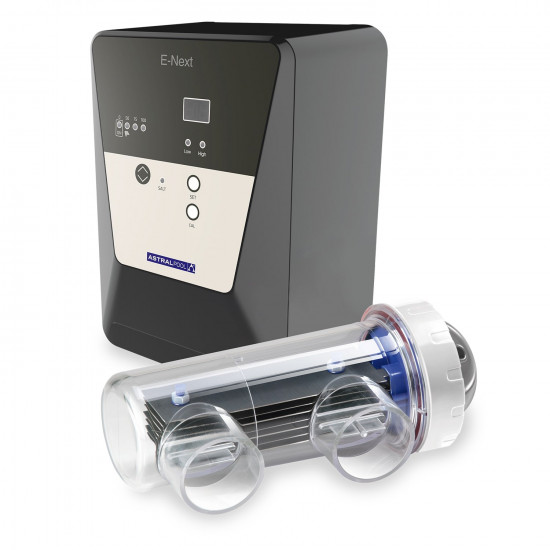

Salt electrolyser E-NEXT pH ASTRAL POOL
E-Next salt water chlorinator is able to treat pools up to 180 m³.
It automatically disinfects and lowers the chlorine production if pool is equipped with an automatic pool cover (dedicated dry contact).
The polarity reversal will help cleaning the electrodes, and its salt alarm will warn the user in case of low salt concentration to avoid damaging the cell and the pool to turn green.
The E-Next pH is equipped with additional accessories to automatically regulate the pH in your pool.
New design and user interface
▪ Quick access to the chlorine production setting.
▪ Led indicating the mode of operation of the electrolyser.
▪ Salinity alarm LED.
E-Next has been developed to ease the owner’s daily routine with security features such as a gas sensor that will stop it if there is no flow and a salt alarm to indicate a lack of salt in the pool
Reduced footprint
With its compact design, E-Next can fit in most installations, even the dampest ones thanks to its a waterproof casing IP45.
Installation diagram for electrolysis system

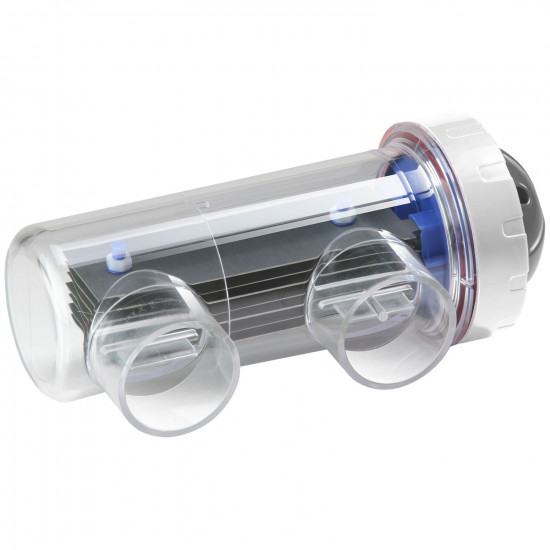

The electrolysis cell is made of transparent polymer, with electrodes inside. The cell must always be installed indoors, connected in accordance with swimming pool installations (behind the filter, pump, etc.). It is recommended that the electrolyser be installed in a place where it can be quickly accessed by the measuring probes. At the same time, in a place that allows easy isolation of the pipe section (valves) to which the cell is connected. This will enable the unit to be maintained without having to partially or completely drain the pool. If the electrolyser is installed on a "by-pass" (recommended), a valve must be installed to regulate the flow.
The direction of flow must be as marked on the cell. The pool water circulation must provide the minimum flow rate shown in the Technical Specifications Table by model.
Device specifications
ELECTROLISER | |||||
E-Next 7 | E-Next 12 | E-Next 21 | E-Next 30 | E-Next 40 | |
Input voltage | 230 V – 50/60 Hz | ||||
Input intensity | 0,2A | 0,4A | 0,4A | 0,8A | 0,9A |
Fuse | 2A | ||||
Chlorine production | 7g/h | 12g/h | 21g/h | 30g/h | 40g/h |
Dimensions of swimming pool (water up to 25°C, above 25°C max. volume -25%) | 30 m3 | 50 m3 | 90 m3 | 140 m3 | 180 m3 |
Salinity | 4-6 g/L (mini / max = 4-10 g/L) | ||||
Water temp. | Max 40°C | ||||
Housing | ABS | ||||
Reverse polarity | Yes (2 - 3 h) | ||||
Production control | 0 – 50 – 75 – 100% | ||||
Flow sensor (gas) | Tak | ||||
Pool roller shutter mode | 10% reduction in production | ||||
Salinity alarm indicator | Yes | ||||
ELECTROLYSIS CELL | |||||
Electrode (self-cleaning, activated titanium) | type Tech: 8 000 – 10 000 h | ||||
Min. flow rate (m3/h) | 2 | 3 | 5 | 6 | 8 |
Number of electrode plates | 3 | 5 | 7 | 11 | 13 |
Cell housing | Methacrylate derivative | ||||
Connection | Gluting with PVC adhesive Ø63 mm | ||||
Maximum pressure | 1 Kg/cm² | ||||
Water temperature | 15 – 40°C max | ||||
pH PROBE | |||||
Measuring range | 0.00 - 9.99 pH | ||||
Scope of control | 7.00 - 7.80 pH | ||||
Accuracy | +/- 0.01 pH | ||||
Calibration | Automatic with calibration buffers | ||||
Connection (pH) | One connection 230 V / 500 mA AC max (dosing pump connection) | ||||
pH probe | Epoxy housing, 12x150mm, 0-80ºC, single connector | ||||
Warranty | 24 months |

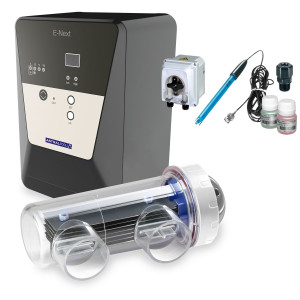

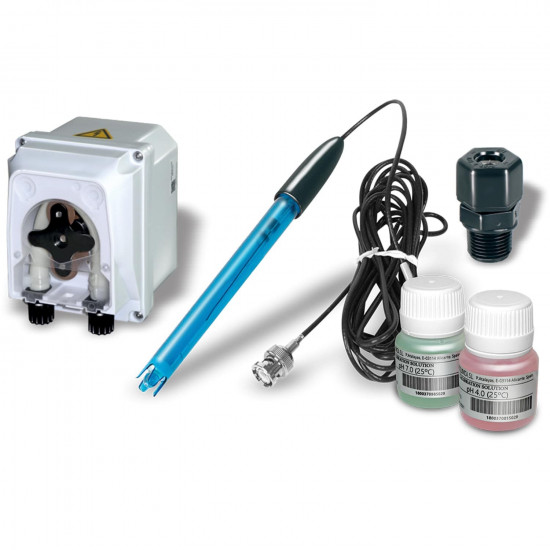

Contents of the package
E-Next electrolysers are supplied in a carton containing:
- Electrolyser with power supply
- Chlorine production cell
- Electrode
- pH probe
- Dosing pump with valves
- 50 mm clamp saddle
- Calibration buffers
- Operating instructions
