Pahlen Compact 9 kW electric pool heater

Pahlen Compact electric pool water heater comes in the range of 3kW to 18kW power. It has features such as:

  • made of 316L stainless steel
  • the heating element consists of special heating rods
  • complete with: a thermostat for setting the desired pool water temperature from 0 to 45 degrees C, a safety thermostat, a water shortage sensor (pressure sensor).

  • it is important to protect the heating element from damage. Special attention should be paid to: high calcium content in the water, a large amount of disinfectants, poor electrical as well as hydraulic connection.
  • Optionally, you can install a flow sensor in the heater or on the pipeline, for protection of the heater from switching on if there is no water flow.

Technical specifications of the Pahlen Compact electric heater

ModelRated PowerEnergy consumption

Min. flow rate

Max flow rateMax. pressureMax temperatureWaterproofing class
230V, 1-phase.230V, 3-phase.400V, 3-phase.with flow sensorwith pressure switchwith flow sensorwith pressure switch
3 kW2,7 - 3,5 kW13A8A5A90 l/min

20 l/min (3-9 kW)

40 l/min (12-18 kW)

300 l/min2,5 bara (2,5 Pa)4 bary (4 Pa)45°CIP44
6 kW5,4 – 6,5 kW26A15A9A
9 kW8,1 – 9,7 kW-23A14A
12 kW10,8 – 13 kW-31A18A
15 kW13,5 – 16,2 kW-38A22A

18 kW

16,2 – 19,4 kW-46A27A

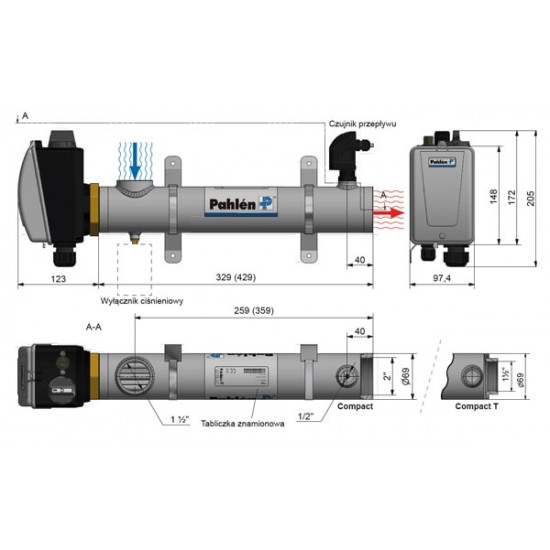

Dimensions of Pahlen electric heater

Dimensions in parentheses are for 12 kW, 15 kW and 18 kW heaters
