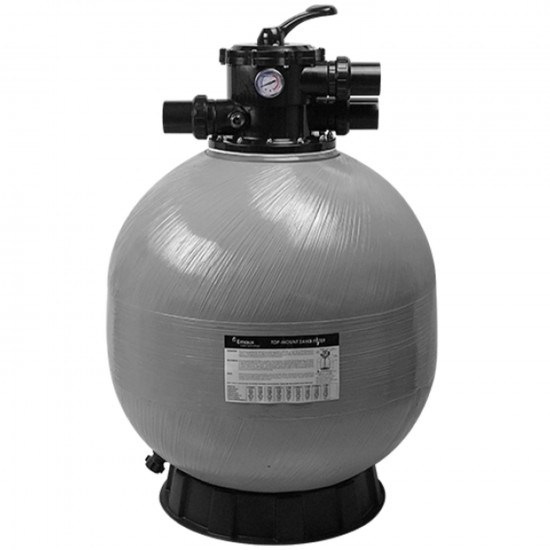

V series top mount sand filter
PE lined fiberglass reinforced polyester tank with unequalled strength and durability equipped with top-mount 6-way valve.
- Made of fibreglass and polyester (DSM resin). Internal PE lining
- Clamp lock is designed to allow 360 degree rotation to simplify installation
- Top diffuser ensures even distribution of water over the top of the sand bed
- Large sand/water drain for rapid winterising or servicing
- The non-corrosive materials are suitable for all-weather performance
- Easy-to-use multi-port valve lets you select any of the operations with a simple lever action
- UV resistant surface allows the filter to work under direct sunlight
Technical data of the V series filter
Model | V350 | V400 | V450 | V500 | V650 | V700B | V800 |
Diameter | 335 mm | 410 mm | 455 mm | 535 mm | 635 mm | 710 mm | 820 mm |
Connection | 50 mm / 1 1/2" | 63 mm / 2" | |||||
Filter dimensions | A - 726 mm B - 335 mm C - 619 mm D - 550 mm | A - 757 mm | A - 814 mm | A - 845 mm B - 535 mm C - 730 mm D - 670 mm | A - 950 mm B - 635 mm C - 835 mm D - 775 mm | A - 1092 mm B - 723 mm C - 960 mm D - 877 mm | A - 1200mm |
Size of the pool | 20 m³ | 30 m³ | 40 m³ | 60 m³ | 80 m³ | 100 m³ | 125 m³ |
Maximum pressure | 2,5 bar | ||||||
Flow | 4 m3/h | 6 m3/h | 8 m3/h | 11 m3/h | 15 m3/h | 19 m3/h | 24 m3/h |
Operating temperature | 1-43°C | ||||||
Bed volume (sand 0.4-0.8mm) | 20 kg | 35 kg | 45 kg | 85 kg | 145 kg | 210 kg | 355 kg |
Net weight | 5 kg | 12,9 kg | 12 kg | 11,7 kg | 15 kg | 21 kg | 28,7 kg |
Guarantee | 24 months |
