Hydro-S FSP filter set with sand filter and circulation pump for swimming pool
- sand filter tank made entirely of durable injection-moulded polyethylene
- designed for private pools
- fitted with a residual current device (RCD) for user safety. Residual current 30 mA
- the kit is fitted with a six-way top valve for easy operation
- the filter can also be backfilled with active AFM glass: 1 bag of sand = 1 bag of AFM glass
- supplied complete with: filter tank, 6-way valve, pressure gauge, air vent, pallet, filter pump, connecting hose between pump and filter

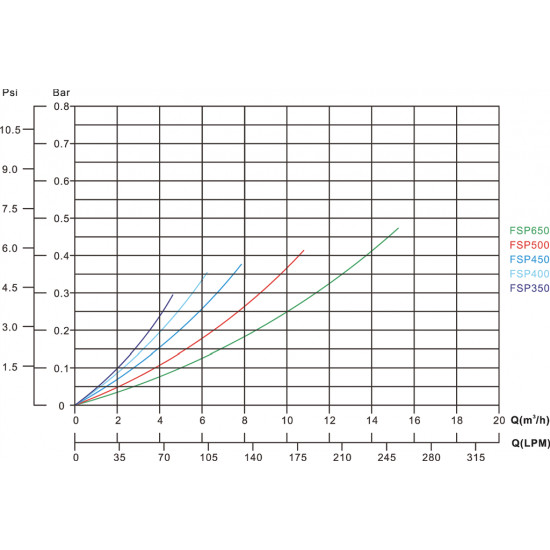

Technical data of the Hydro-S FSP filter set
Type | FSP350-6W | FSP390-6W | FSP400-6W | FSP450-6W | FSP500-6W | FSP650-6W |
Filter diameter | 350 mm | 390 mm | 400 mm | 450 mm | 500 mm | 600 mm |
Sand | 20 kg | 35 kg | 35 kg | 45 kg | 85 kg | 145 kg |
Valve | 6-way | 4-way | 6-way | 6-way | 6-way | 6-way |
Connection size | 50 mm / 1 1/2" | 50 mm / 1 1/2" | 50 mm / 1 1/2" | 50 mm / 1 1/2" | 50 mm / 1 1/2" | 50 mm / 1 1/2" |
Flow | 4 m3 / h | 8 m3 / h | 6 m3 / h | 8 m3 / h | 12 m3 / h | 15 m3 / h |
Max. pool volume | 20 m3 | 40 m3 | 40 m3 | 40 m3 | 60 m3 | 80 m3 |
Type pump | SS020 | SS050 | SS033 | SS050 | SS075 | SS100 |
Pump supply | 230V | 230V | 230V | 230V | 230V | 230V |
Guarantee | 24 months | 24 months | 24 months | 24 months | 24 months | 24 months |
Dimensions of the Hydro-S FSP filter set

Typ | FSP350-6W | FSP390-6W | FSP400-6W | FSP450-6W | FSP500-6W | FSP650-6W |
A | 160 mm | 235 mm | 175 mm | 210 mm | 235 mm | 300 mm |
B | 680 mm | 724 mm | 759 mm | 813 mm | 856 mm | 961 mm |
C | 555 mm | 760 mm | 760 mm | 760 mm | 760 mm | 760 mm |
D | 350 mm | 527 mm | 400 mm | 449 mm | 449 mm | 627 mm |
