TEBAS heat pumps are manufactured using high-quality materials and materials under the supervision of a Polish company. They are designed to reduce energy consumption by generating heat using energy from the surrounding air.
This is one of the best and cheapest solutions for heating pool water using "green energy" in European climatic conditions.
The characteristics of these pumps are maximum heat gains with low operating costs (efficient COP with lower power consumption) and smooth adjustment of heating power to the current heat demand.
The concept of cooling efficiency COP (Coefficient of Performance) requires explanation. This is the ratio of the heating power output to the power consumed by the pump. For example, if the COP is 8, and the pump draws 1 kW of power, it gives up 8 times the heating power, or 8 kW.
3 operating modes for heating and cooling (Boost, ECO-quiet, Smart) that provide the perfect fit for your needs

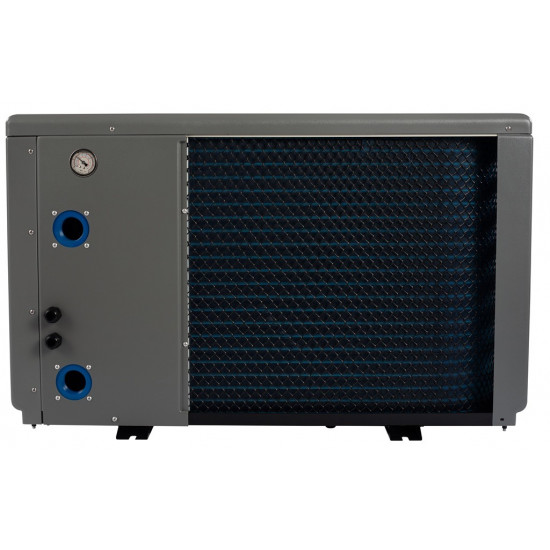

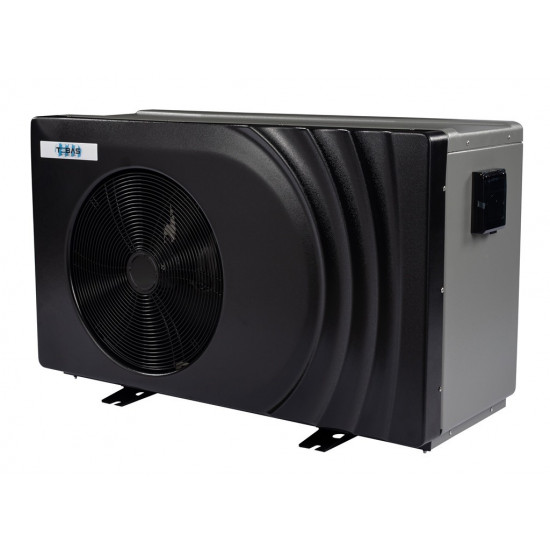

2 models suitable for smaller (TEBAS INVERTER S) and larger pools (TEBAS INVERTER M) - easy to choose the right pump for your pool
designed for European climatic conditions with high-quality materials:
- titanium spiral heat exchanger
- waterproof digital display and control panel
- sturdy housing, resistant to UV rays

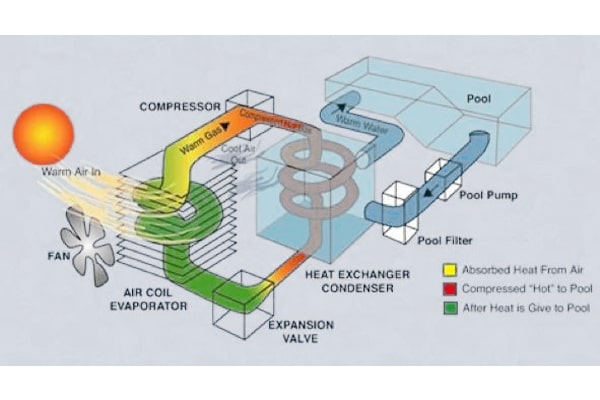

TEBAS pumps are air pumps, or more precisely, air/water pumps, and use atmospheric air as the lower source (from which heat is extracted).
These pumps are pumps that contain all components in a single housing. This makes the installation of the pumps very simple, and the additional investment costs are the purchase of PVC mm pipes, fittings and valves and the connection of the device to the pool filtration system.
The low flow resistance of the condenser, or titanium heat exchanger, in which the pool water is heated, makes it possible to use the existing pool filter pump.
| Type | INVERTER S | INVERTER M | ||
| Manufacturer code | 14609 | 14614 | ||
| Recommended volume of the pool (m3) | up to 50 | up to 85 | ||
| Heating capacity at P28°C/80%HR | Boost mode | Power (kW) | 10,6 | 16,5 |
| COP | 6,5 ~ 5,4 | 6,5 ~ 5,4 | ||
| Smart mode | Power (kW) | 10,9 ~ 3,9 | 16,5 ~ 5,5 | |
| COP | 10,8 ~ 5,4 | 10,8 ~5,4 | ||
| ECO-silent mode | Power (kW) | 7,1 ~ 3,9 | 9,9 ~ 5,5 | |
| COP | 10,8 ~ 8,3 | 10,8 ~ 8,3 | ||
| Heating capacity at P15°C/70%HR | Tryb Boost | Power (kW) | 7,5 | 11,7 |
| COP | 4,9 ~ 4,4 | 4,6 ~ 4,4 | ||
| Tryb Smart | Power (kW) | 7,5 ~ 3,5 | 11,7 ~ 4,2 | |
| COP | 6,7 ~ 4,4 | 6,7 ~ 4,4 | ||
| Tryb ECO-silent | Power (kW) | 4,9 ~ 3,5 | 6,7 ~ 4,2 | |
| COP | 6,7 ~ 5,6 | 6,7 ~ 5,7 | ||
| Min. noise level up to 10 m - ECO-silent mode (dB) | 21 | 22 | ||
| Working temperature range | -15°C do 38°C | |||
| Compressor | 2D Full DC Inverter | |||
| Regulator | electronic | |||
| Exchanger | titanium spiral | |||
| Housing | ABS anti UV | |||
| Refrigerant | R32 | |||
| Hydraulic connection | 1,5"/50mm | |||
| Power supply | 230 V/1~+N/50Hz | |||
| Protection and cable size (for 20 m) | C16A (3G2,5mm2) | |||
| Power consumption max. P26°C (kW) | 1,4 | 2,1 | ||
| Minimum water flow (m3/h) | 4 | 5 | ||
| Device dimensions (mm) | 968x358x593 | 1070x430x690 | ||
| Net weight (kg) | 55 | 68 | ||
| Warranty | 24 months | 24 months | ||
The selection of the appropriate TEBAS heat pump is made on the basis of the volume of the pool, according to the indications in the table "Technical data".
For example, for a pool with a volume of 43 m3 according to the table "Technical data", the appropriate pump is TEBAS INVERTER S (heat pump for pools up to 50 m3).
The pumps have 3 modes of operation: Boost, ECO-SILENT, Smart
TEBAS INVERTER heat pumps generate maximum heat gains with low operating costs
Defrosting process fast and efficient
ECO-SILENT mode of operation, thanks to which the heat pump generates a low noise level
Providing efficient heat transfer
Guaranteeing optimal performance
