Description

Countercurrent JET SWIM ATHLETE

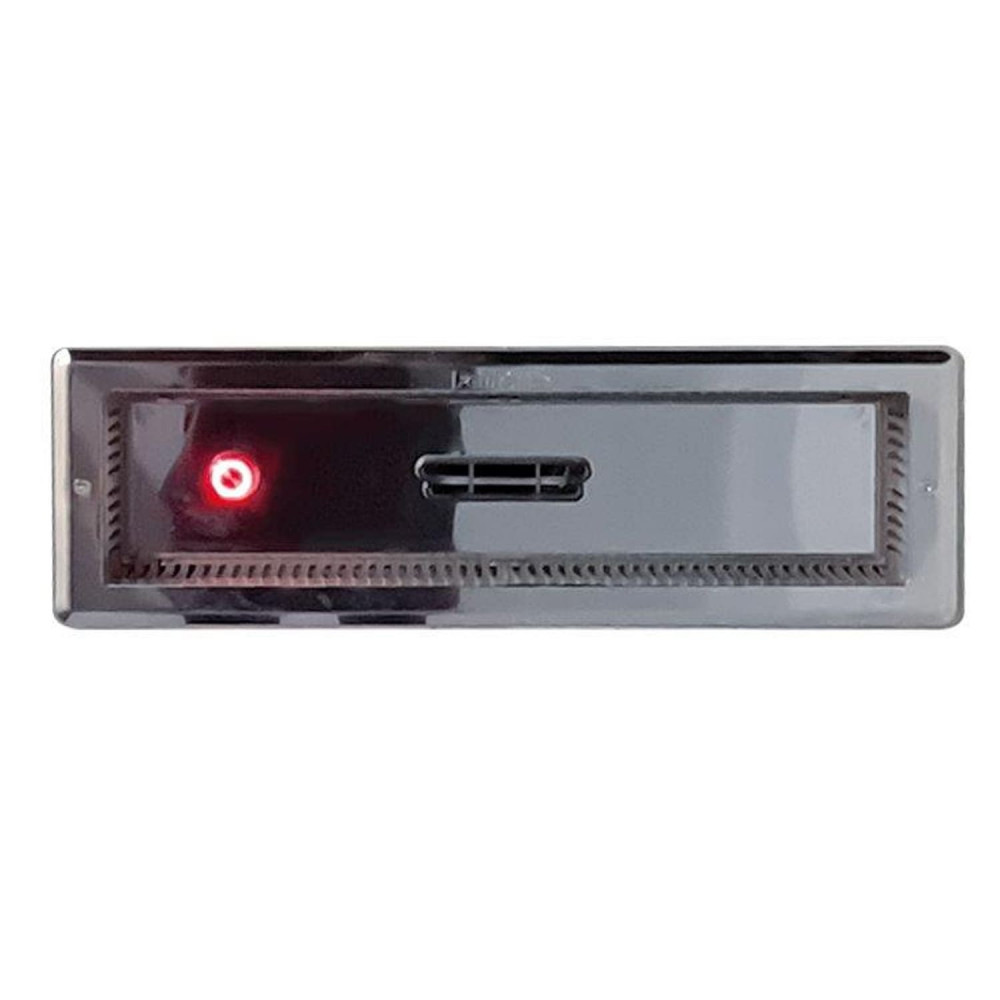

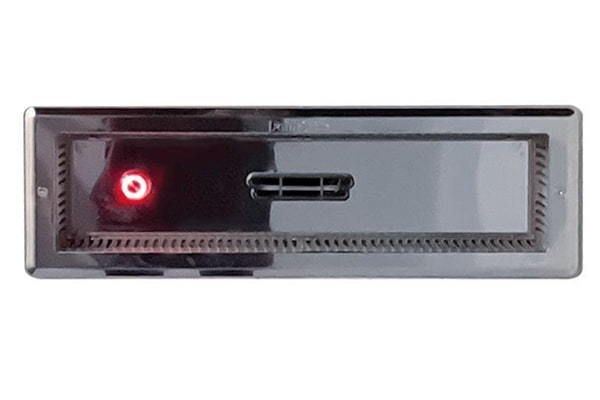

The counter-current system with an elegant AISI316 stainless steel front is suitable for all types of pools – foil, concrete or prefabricated.

It is equipped with an efficient BRAVUS pump.

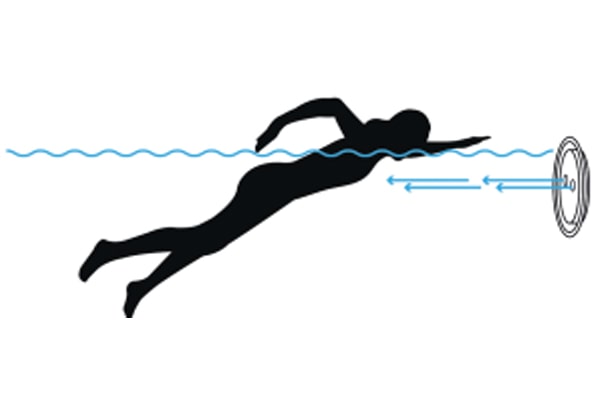

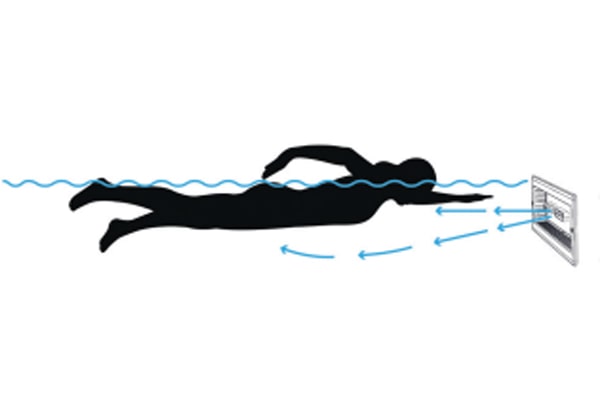

The front panel features two oval jets that ensure balanced water flow. The lower jet is directed downwards to lift the body, providing a more natural swimming experience. This makes training not only effective but also extremely enjoyable.

Other units

JET SWIM ATHLETE

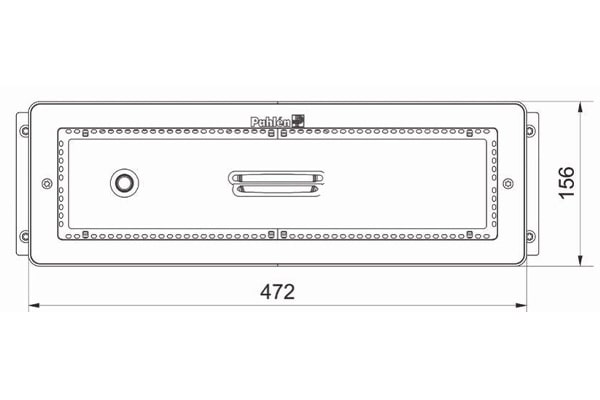

Panel technical specifications:

Weight: 5 kg

Connections: 2 1/2''

1x piezoelectric button

Two oval nozzles

Front panel made of AISI316L

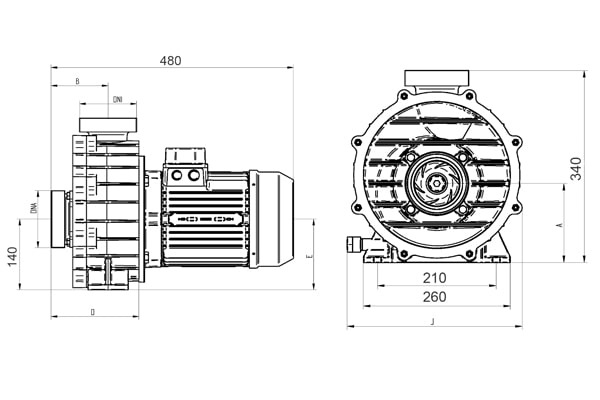

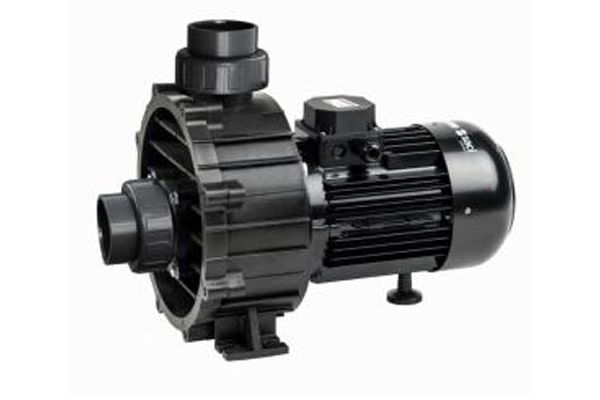

Technical data of the pump BRAVUS:

Impeller – Noryl

Stainless steel shaft AISI-316

Cataphoretic painting – excellent anti-corrosion properties

3" internal thread - DN90 glued connectors

Protection - IP55

Maximum water temperature: +40 °C

To salt water up to 5 g/l (<0.5%)

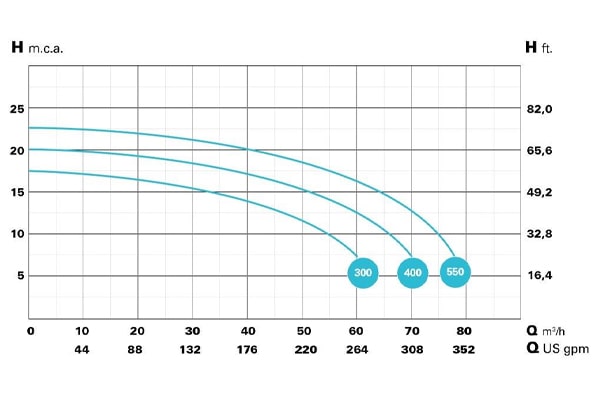

Model

573BRA550

573BRA400573BRA300

Power

4,0 kW3 kW2,2 kW

Power supply

400 V230/ 400 V400 V
Capacity84 m3/h76 m3/h66 m3/h
Connections Glued: 90/90 mm
Weight40 kg28 kg23 kg

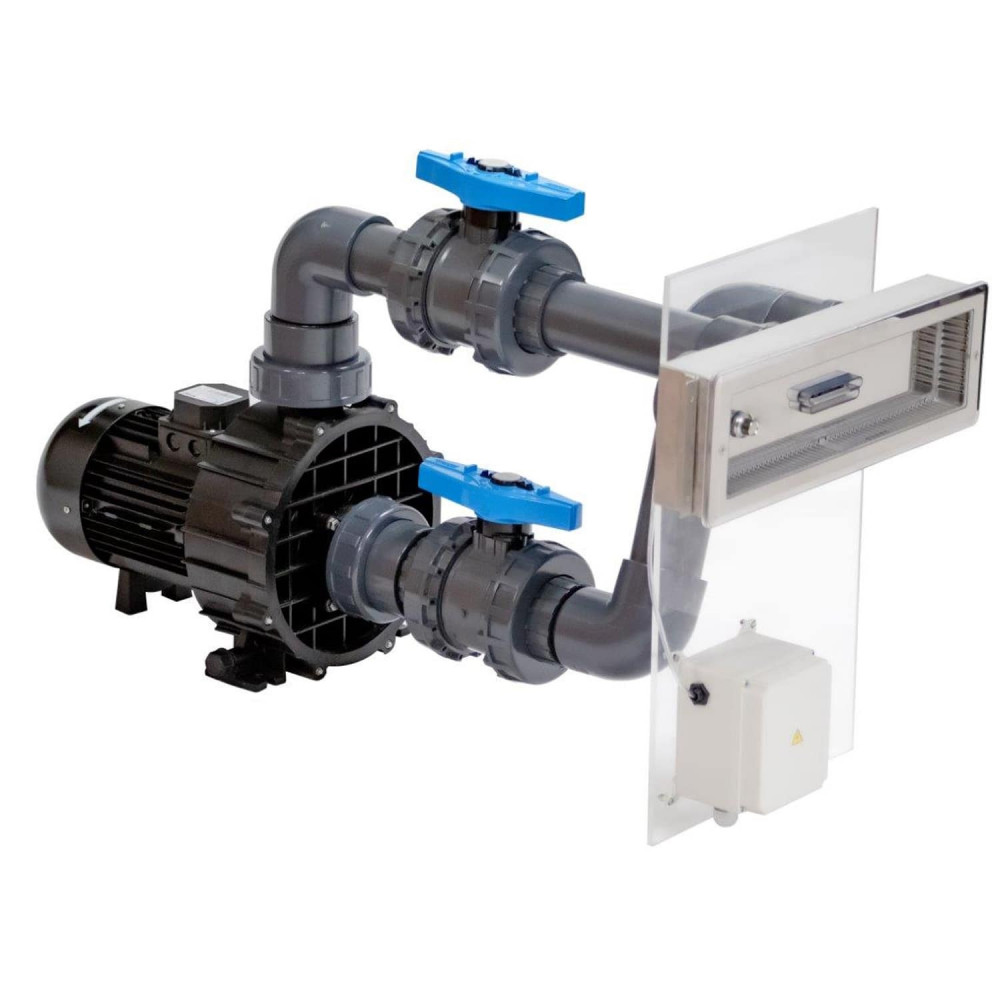

Installation of a counter-current system:

  1. See the diagram for the entire installation process.
  2. The selection of pipes and connectors depends on the pump model.
  3. The pumps and controller must be installed in dry rooms. It is absolutely necessary to remove water from the lower part.
  4. In order to ensure trouble-free operation of the pneumatic switch, the distance between the pool and the controller must not exceed 3 metres.
  5. The air pipe must be installed in a protective pipe. It can be replaced if necessary.
  6. Work related to the installation of electrical connections must be carried out by a qualified electrician.

Zestaw zawiera:

BRAVUS attraction pump

Manual

Front panel

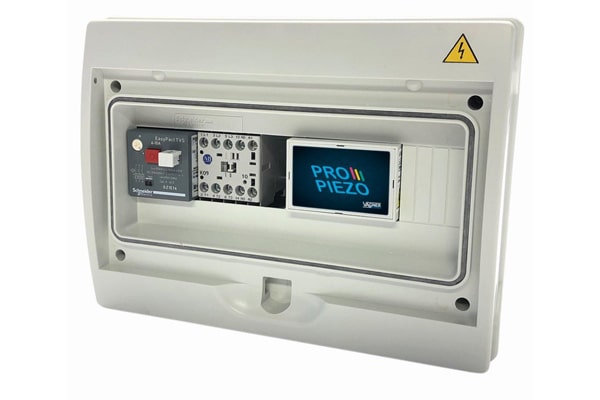

Controller

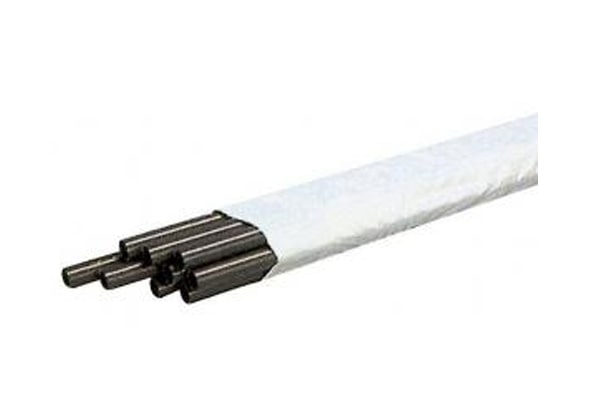

Pipe

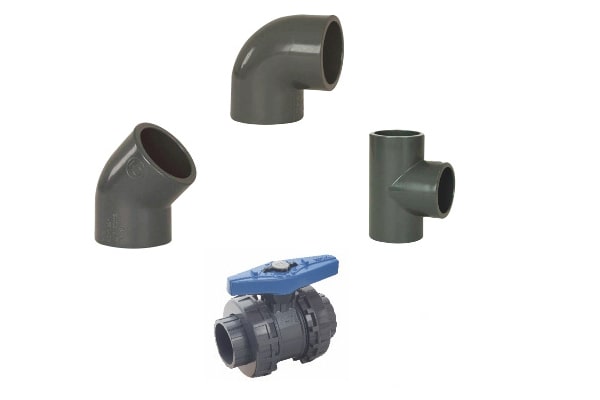

Set of fittings for connecting the pump
