Filter set for garden pool 25m3 6m3/h ECO OKU
Filter set for garden pool 25m3 6m3/h ECO OKU
Filter set for garden pool 25m3 6m3/h ECO OKU
Filter set for garden pool 25m3 6m3/h ECO OKU
Filter set for garden pool 25m3 6m3/h ECO OKU
Filter set for garden pool 25m3 6m3/h ECO OKU
Filter set for garden pool 25m3 6m3/h ECO OKU
Filter set for garden pool 25m3 6m3/h ECO OKU

Filter set for garden pool 25m3 6m3/h ECO OKU

300100
wysyłka 24h
Kurier: 18 PLN
zł1,099.00
Tax included

https://poolsystem.pl/modules/iqithtmlandbanners/uploads/images/63e5f4b43508c.jpg

Description

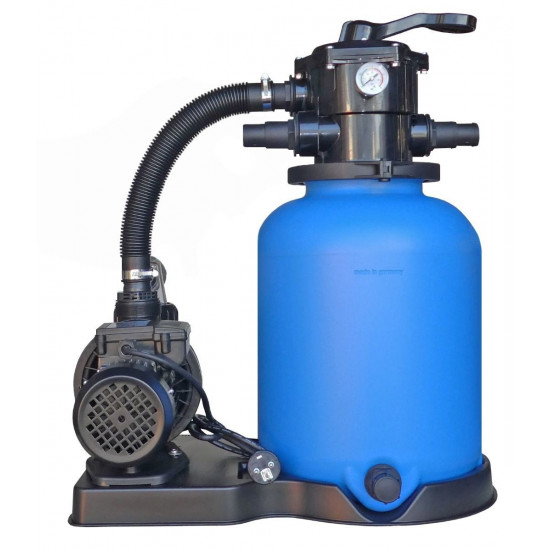

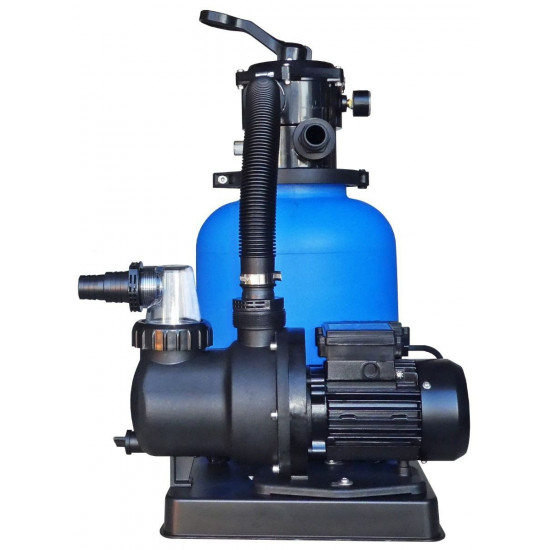

Filter set for swimming pool 25m3 Ø 300 mm 6 m3/h ECO OKU

  • Ideally suited to larger in-ground, free-standing, Canadian pools such as Intex, Bestway , GRE etc.
  • The filter tank is made as a single cast from polyethylene - 'made in Germany'.

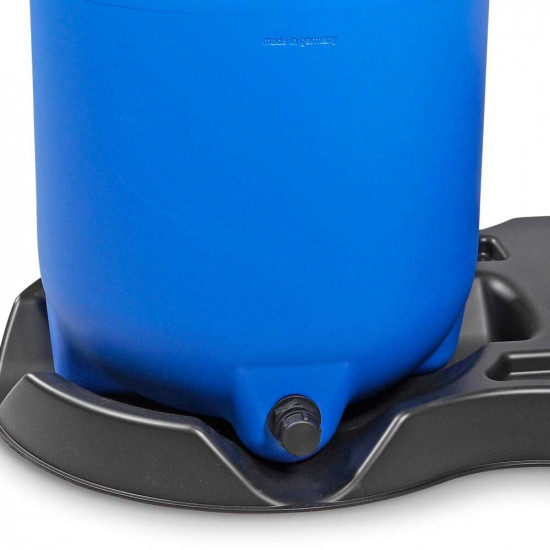

  • In order to minimise noise, the set is delivered on a base of
  • can be connected to a 32 or 38 mm hose (sleeves included) or to a 1 1/2 " (50 mm) female thread
  • 6-way valve with pressure gauge
  • dimensions of the set: length 56 cm / width: 45 cm / height 60 cm

Attention

Filter media (filter sand, AFM glass) not included, can be found in the associated products at the bottom of the page.

Technical data for the OKU filter tank

ModelOKU ECO
Diameter300 mm
Connection size

1 1/2" or 32/38 mm hose

Size of the pool

up to 25 m³

Operating pressure

0,8 bar

Operating temperature1-38°C

Sand 0,4 - 08 mm

20 kg

Guarantee24 months

Technical data of the filter pump SPS 75

ModelSPS 75
Power supply230 V
Power0,45 kW
Efficiency6 m3/h
Connection size

Hose 32 / 38 mm lub Female thread 1 1/2 "

Weight6 kg
Guarantee24 months

Assembling the OKU filter unit

Useful for assembly:

Filter sand for swimming... Filter sand for swimming... 2
wysyłka 24h
AFM pool filter glass 0.4 -...
wysyłka 24h
Wąż do basenu ssący... Wąż do basenu ssący... 2
wysyłka 24h
Miniskimmer for... Miniskimmer for... 2
wysyłka 24h
Heat pump for above ground... Heat pump for above ground... 2
wysyłka 24h

Need help?

If you have not found the answer to your inquiry, please use the form below and write how we can help you?. We provide quick contact and comprehensive service.

Team Poolsystem.pl
Tomasz Tomkowicz

Pool Technology Specialist

Thank you for reading our article, if you have more questions or need more specialized help - write to me using the form.

Product Details

Pool size
up to 25 m3
Performance
6 m3/h
Filter size
300 mm

About OKU Obermaier

System filtrów piaskowych jest potrzebny do każdego basenu. Bez systemu oczyszczania wody w basenie mogą szybko osiedlić się bakterie, które negatywnie wpływają na jakość wody w basenie.
