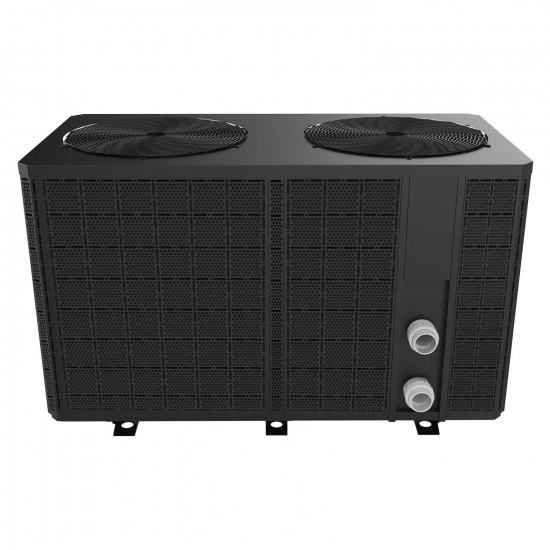

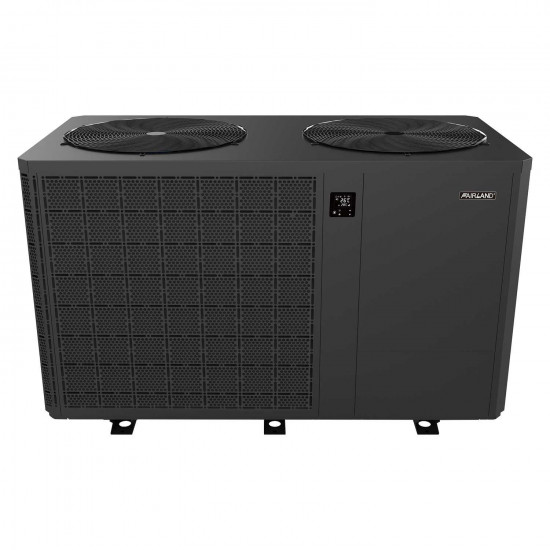

Pool heat pump 520m3 110kW 400V INVERTER PLUS FAIRLAND

Pool heat pump 520m3 110kW 400V INVERTER PLUS FAIRLAND

Name: Pool heat pump 520m3 110kW 400V INVERTER PLUS FAIRLAND
Brand: Fairland
SKU: IPHCR300T
Price: 102799 PLN
Availability: InStock

Reference IPHCR300T

102,799.00 zł

Secure Payments

wysyłka 24h

Odbiór osobisty w siedzibie
ul. Graniczna 59, Chorzów, Poland

Free!

Przesyłka kurierska DPD
Courier delivery | Add 3-5 days

Free!

Przesyłka paletowa
Pallet transport | Add 3-5 days

Free!

Ask for this product

Professional consultantsPool technology specialists

Door 2 Door serviceWe take care of all the paperwork

100% Polish warrantyEasy and fast procedure

Authorised dealerYou are buying first hand

Description

We will make the bypass to the heat pump for your pool !

When buying a heat pump from our store, add one of the bypasses below to your cart and we will glue it together especially for you and send it with your order - this will make the installation much easier !

*service only valid when pool heat pump is included in the order

Glued bypass for pool heat pump with external thread for intex / bestway pool

-449.00 zł

Glued bypass for pool heat pump with external thread for intex / bestway pool

bypass2

Poolsystem

1.00 zł 450.00 zł

Time left

Glued bypass for pool heat pump with sleeve for 32/38 mm hose

-449.00 zł

Glued bypass for pool heat pump with sleeve for 32/38 mm hose

bypass38

Poolsystem

1.00 zł 450.00 zł

Time left

Glued bypass for pool heat pump to paste 50 mm pipe

-449.00 zł

Glued bypass for pool heat pump to paste 50 mm pipe

bypass50

Poolsystem

1.00 zł 450.00 zł

Time left

About Fairland Inverter-Plus Pumps

Fairland Inverter-Plus IPHCR are pool heat pumps with full inverter technology. They are more expensive than conventional heat pumps, but are definitely more energy efficient, as the inverters used smoothly adjust the output (i.e. revolutions) of both the compressor and the fan to achieve the user's desired pool water temperature. These pumps are designed to operate mainly at average efficiencies of 50%, which is completely sufficient to maintain the desired water temperature throughout the swimming season. When deciding to purchase an Inverter-Plus pump, we suggest choosing a larger model so that the heat pump will run most of the time, but at a lower speed. Such operation makes it possible to achieve a high cooling coefficient of performance (COP), 10 times lower noise levels, prolongs the life of the pump due to less intensive operation, and ensures at least half the operating costs compared to On/Off pumps.

Operating principle of Inverter-Plus IPHCR heat pumps

Inverter-Plus are air pool pumps, or more precisely, air-to-water pumps, and use atmospheric air as the lower source (from which heat is extracted). These pumps are "monoblock" pumps, i.e. compact pumps that contain all components in a single housing. This makes the installation of the pumps very simple, and the additional investment costs are the purchase of PVC pipes, fittings, valves and connecting the device to the pool filtration system.

Low flow resistance in the condenser, or titanium heat exchanger, in which the pool water is heated, makes it possible to use the existing pool filter pump.

Average COP

Average COP = 11.5 during the 180-day bathing season, assuming A26 C/W26 C/H80 %.

For the On/Off pump, the coefficient remains constant at COP = 5.0 during the entire 180-day period, while for the Inverter-Plus pump, after 5 days of water heating (the beginning of the season), the coefficient reaches an average COP = 11.5.

Average COP = 7.0 during the 180-day bathing season, assuming A15 C/W26 C/H70 %.

For the On/Off pump, the coefficient remains constant at COP = 4.0 throughout the 180-day period, while for the Inverter-Plus pump, after 5 days of water heating (beginning of the season), the coefficient reaches an average COP = 7.0.

Low volume, quiet operation

Inverter-Plus pool pumps use quiet Mitsubishi compressors and inverter fans.

The operation of the device when maintaining the set water temperature at 50% efficiency is about 10 times quieter than the operation of classic On/Off heat pumps.

Easy control, Wifi module

Each Inverter-Plus pump is equipped with a Wifi module, so we can control the operation and temperature using a smartphone.

Operation of Inverter-Plus pumps is very simple. On the housing of the pump is installed a controller with an on/off switch, buttons for setting the water temperature, a Mode and Lock settings button, and a display that shows the inlet/outlet water temperature, pump output and the selected mode of operation.

Operation of the unit comes down to turning on the pump and using the buttons to select the desired pool water temperature. Using the Mode button, you can select the standard Smart mode or the Silence mode. It is recommended to select Silence mode at the beginning of the swimming season, when the water temperature has not yet reached the setpoint.

Which heat pump Inverter-Plus model for a swimming pool?

Selection of the appropriate Inverter-Plus IPHCR heat pump is made on the basis of the volume of the pool, according to the indications in the table "Technical data".

For example, for a pool with a volume of 43 m3 according to the table "Technical data", the appropriate pumps are IPHCR33 and IPHCR45.

However, the manufacturer recommends that you always choose a larger pump model (in the example above it would be IPHCR45). This will allow the pump to work longer at a lower speed (capacity) bringing the following benefits:

significantly higher COP, thereby providing at least half the
The cost of heating a swimming pool compared to on/off pumps,
faster heating of water,
10 times lower noise level,
longer pump life due to less intensive operation.

Technical specifications of Fairland Inverter-Plus heat pumps

Model	IPHCR150T	IPHCR300T
Recommended swimming pool volume (m3)	130- 260	260 - 520
Air temperature range (0C)	-7 to 43
	Parameters at A26 C/W26 C/H80% - air temp/water temp/humidity
Heating power (kW)	60,0	110,0
COP - coefficient of performance	6.2 ~ 16.1	6.0 ~ 16.2
COP - at 50% efficiency	10.01	10
	Parameters at A15 C/W26 C/H70% - air temp/water temp/humidity
Heating power (kW)	40	81
COP - coefficient of performance	4.6 ~ 8.1	4.6 ~ 8.1
COP - at 50% efficiency	6,8	6,8
	Parameters at A35 C/W28 C/H80% - air temp/water temp/humidity
Cooling capacity (kW)	26.5	54,0
Sound level at a distance of 1 m dB(A)	54 - 62 dBA	56 - 65 dBA
Compressor	Mitsubishi DC rotary inverter with twin rotors
Fan motor	Brushless DC inverter
Heat exchanger (condenser)	PVC-coated titanium spiral
Housing material	Aluminium alloy
Power supply	400 V/50 Hz	400 V/50 Hz
Rated power at 15 deg C	2.25~8.89 kW	4.69~17.6 kW
WiFi	YES - built-in
Fuse (A)	25,0	48,0
Supply cable (mm2)	5x2,5	5x2,5
Recommended water flow (m3/h)	20 – 25	40 - 50
Swimming pool water inlet/outlet connections	d75	d110
Refrigerant	R410A
Net dimensions - L - H - W (mm)	1000x1110x1260	2100×1090×1280
Net weight (kg)	185	370
Warranty	120 miesięcy na sprężarkę i tytanowy wymiennik ciepła 36 miesięcy na pozostałe elementy

Package contents

Dimensions

A	B	C	D	E	F	G	H
514 mm	790 mm	498 mm	539 mm	2154mm	650 mm	74mm	948mm

Main features of Fairland Inverter-Plus:

Certification by TUV Rheinland

Inverter Plus pumps are certified after testing by the German certification body TUV Rheinland and fully comply with EU regulations given in the EN14511 standard.

Low operating costs

The average efficiency coefficient of Inverter-Plus pumps is COP = 11.5 (50% efficiency) and COP = 16 (20% efficiency) assuming A260C/W260C/H80%. Classic On/Off heat pumps achieve an efficiency factor of COP = 5.0 under these conditions - that is, more than 2 times lower.

Operating at air temps down to - 7 C

Inverter-Plus heat pumps are designed to operate at air temperatures as low as -7 C. This significantly extends the ability to enjoy comfortable pool water temperatures at low air temperatures.

Mitsubishi inverter compressor

The Inverter-Plus pumps use Mitsubishi's DC twin rotor compressors, known for their high quality. They ensure high efficiency, quiet operation and long service life.

Inwerterowy silnik elektryczny wentylatora

Inverter-Plus pumps use brushless DC inverter motors. This ensures lower power consumption and generates significantly less noise.

Wifi control

Inverter-Plus pumps have a built-in WiFi module as standard, allowing remote management from anywhere at any time via an app
