We will glue the bypass to the heat pump for your pool !
When buying a heat pump from our shop, add one of the bypasses below to your basket and we will glue it together especially for you and send it with your order - this will make installation much easier!
*valid only when pool heat pump is included in the order

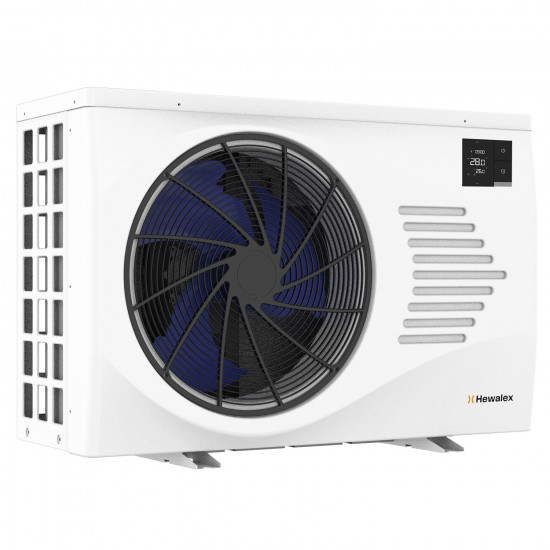

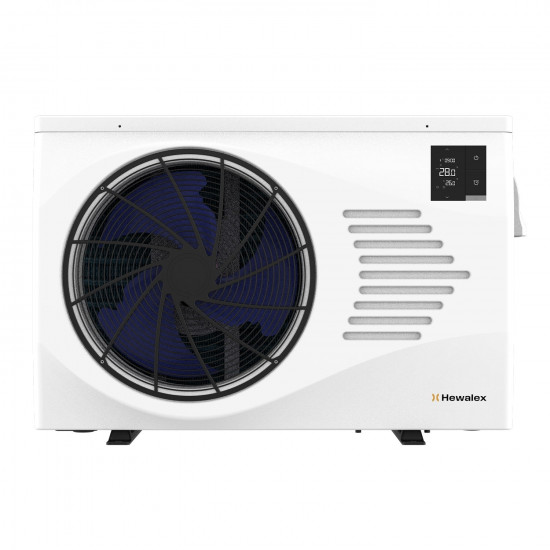

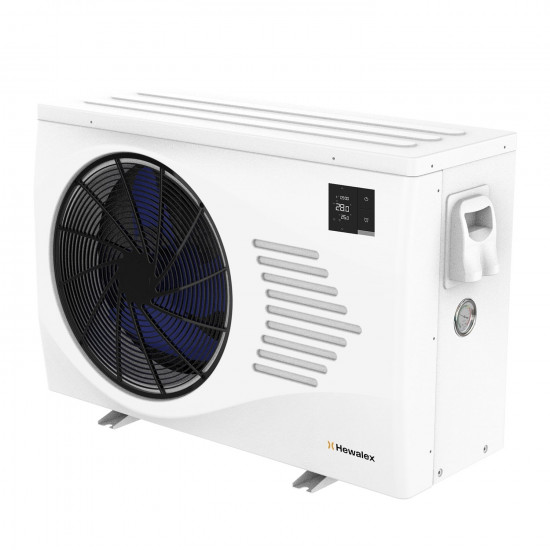

Inverter pool heat pump Hewalex PCWBi-C
The PCWBi 11.5kW-C air-to-water heat pump is designed for direct connection to the technological circuit of the swimming pool water. It is used to heat water as well as cooling it if necessary. A distinguishing feature distinguishing feature of the unit is the infinitely variable regulation of heating power due to an inverter compressor. inverter compressor.
The heating capacity range of the PCWBi heat pump 11.5kW-C depending on the operating point is 2.6-11.5 kW at A27/W26 (according to EN 14511, air 27oC, water temperature 26oC) or 1.5-8.5 kW for A15/W26 (according to EN 14511, air 15oC, water temperature 26oC).
Hot water whatever the weather
PCWBi heat pumps are used for seasonal water heating in both private and semi-public pools. The use of a heat pump can extend the life of an outdoor swimming pool by up to 5-6 months a year, providing the required water temperature at low operating costs..
The PCWBi heat pump can be used for any type of swimming pool, whether it is of solid construction or for a frame pool, inflatable pool, etc.
Differences between PCWBi-B and PCWBi-C heat pumps
Hewalex offers two ranges of inverter pool heat pumps: PCWBi-B and PCWBi-C. The two models differ not only in appearance and colour, but also in key design features.
PCWBi-B heat pumps are equipped with Mitsubishi compressors. In addition, the way the air is ejected from the fan to the side and from underneath, contributes to the reduced noise during operation. Due to these design differences, PCWBi-B heat pumps are some of the quietest units of their type on the market.
PCWBi-C heat pumps, on the other hand, are equipped with Gree compressors and have a standard air discharge.
Savings associated with heat pump heating:
The electricity consumption of a heat pump heating pool water will be on average 5-6 times lower compared to an electric heater. With a pool heat pump COP efficiency of 6, only 1 kWh of electricity is consumed to generate 6 kWh of heat. For an average sized swimming pool with a capacity of 20 m³, we need to supply around 900 kWh of heat energy per summer month to maintain the required pool water temperature.
In a hydronic system, the heat pump must be located between the filter and any pool water treatment unit. In addition, it must be connected on a bypass to regulate the flow through the heat pump. The water flow rate through the pool heat pump is regulated by a valve at the inlet to the unit and a valve on the bypass. The bypass valves are mandatory and are used to disconnect the heat pump from the system for cleaning the filter system and to empty the heat pump of water for the winter period.
To ensure optimal water flow through the heat pump, operate the valve (5) and the valves (7) until the water temperature increase (after passing through the heat pump exchanger) reaches 3°C (T Inlet - Inlet = ~3). The water inlet and outlet temperatures are shown on the unit display.
Connection of a swimming pool heat pump
4-year warranty as standard
PCWBi inverter heat pumps already come with a 4-year warranty as standard. They are the latest generation of equipment for this purpose, following the trend of using inverter compressors in heat pumps. Based on proven solutions, the current model does not require mandatory paid maintenance. This further reduces the long-term running costs of the unit significantly.
Touchscreen heat pump controller
Hewalex PCWBi-C inverter pool heat pumps are equipped with a colour LED touchscreen controller that allows us, among other things:
- setting the heating or cooling temperature
- setting the operating time
- possibility to set the "silent operation" mode
Aqua Temp application
All Hewalex pool heat pumps are equipped with a WI-FI module, so you can remotely change and control the unit's settings using the dedicated Aqua Temp app.
- ON/OFF
- setting the pool water temperature
- information on the current operating mode of the heat pump
- Current weather and 3-day forecast
- Setting of pump operating time
- Notification of critical operating errors
- Temperature graph for the last 7 days
Technical data for pool heat pumps HEWALEX PCWBi-C:
Typ | PCWBi-C 7 kW | PCWBi-C 9 kW | PCWBi-C 11,5 kW | PCWBi-C 13,2 kW | |
Recommended pool volume | 0 - 25 m³ | 15 - 40 m³ | 20 - 50 m³ | 25 - 60 m³ | |
Min. / Max. water flow | 2,0 / 5,5 m³/h | 2,4 / 6,5 m³/h | 2,8 / 7 m³/h | 3,1 / 7,5 m³/h | |
Recommended water flow | 2,8 m³/h | 2,8 m³/h | 3,2 m³/h | 4,0 m³/h | |
A27/W26 | Heating power | 2,0 - 7,0 kW | 2,4 - 9,0 | 2,6 - 11,5 | 3,2 - 13,2 |
COP | 5,8 - 10,2 | 5,8 - 10 | 6,0 - 10,4 | 5,8 - 10,3 | |
A15 /W26 | Moc grzewcza | 1,1 - 5,0 kW | 1,2 - 6,5 kW | 1,5 - 8,5 kW | 1,8 - 10,0 kW |
COP | 4,0 - 6,0 | 4,1 - 6,0 | 4,3 - 6,2 | 4,4 - 6,2 | |
A10 / W26 | Moc grzewcza | 1,3 - 4,6 kW | 1,6 - 5,9 kW | 1,7 - 7,5 kW | 2,2 - 8,8 kW |
COP | 3,6 - 5,0 | 3,6 - 5,0 | 3,8 - 5,0 | 3,8 - 5,0 | |
Compressor type | GREE inverter rotary | ||||
Refrigerant type | R32 | ||||
Outdoor temperature range | -7°C to 43°C, optimum operating conditions from 10°C, note - do not allow condenser water to freeze. | ||||
Power supply | 230 V, 50 Hz | ||||
Power cable | 3x2,5mm² | ||||
Overcurrent protection | C16 | C16 | C16 | C16 | |
Power supply | 0,20-1,21 kW | 0,24-1,55 kW | 0,25-1,92 kW | 0,31-2,28 kW | |
Device dimensions | 933,5/360/610 mm | 934/360/611 mm | |||
Water connections | 50 mm | ||||
Net / gross weight | 40 / 52 kg | 42 / 55 kg | 44 / 56 kg | 44 / 56 kg | |
Guarantee | 4 years |
Dimensions of Hewalex heat pump PCWBi-C 11,5 kW
Contents of the package
Heat pump Hewalex PCWBi
WiFi module
Vibration isolators
Instruction manual in Polish
Aqua Temp mobile app
Remote control of the Hewalex heat pump:
10 advantages of a Hewalex pool heat pump
Service Door to Door
We provide warranty as well as post-warranty door-to-door service for Hewalex pool pumps.
When you buy from our shop, we will collect the heat pump from you by courier and send it back to you under warranty (free of charge) as well as after the warranty period.
