Pahlen Aqua Compact 18 kW electric pool heater

The Pahlen Aqua Compact electric pool water heater comes in a range of 3kW to 18kW of power. It has such features as:

- built-in thermostat (with a temperature range of 0 - 45°C)

- overheating protection (with a maximum break temperature of 60°C)

- flow sensor

- housing made of reinforced thermoplastic material

- heating element made of high quality Incoloy 825 material

- internal bonding connections for PVC pipes Ø50 mm are included as standard

NOTE: the heater in the standard version (with an Incoloy cartridge) is not intended for use in aggressive water, in salt water or in swimming pools with salt generation / electrolysis. In such cases, we recommend the Pahnel Aqua Compact titanium heater.

Technical specifications of the Pahlen Aqua Compact electric heater

ModelRated PowerEnergy consumption

Min. flow rate

Max flow rateMax. pressureMax temperatureWaterproofing class
230V, 1-faz.230V, 3-faz.400V, 3-faz.
3 kW2,7 - 3,5 kW13A8A5A90 l/min300 l/min2,5 bara (2,5 Pa)45°CIP45
6 kW5,4 – 6,5 kW26A15A9A
9 kW8,1 – 9,7 kW-23A14A
12 kW10,8 – 13 kW-31A18A
15 kW13,5 – 16,2 kW-38A22A

18 kW

16,2 – 19,4 kW-46A27A

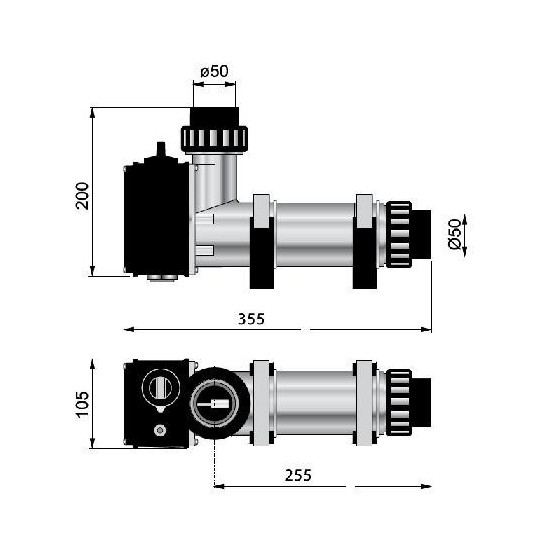

Dimensions of Pahlen electric heater

Dimensions in parentheses are for 12 kW, 15 kW and 18 kW heaters

Need help?

If you have not found the answer to your inquiry, please use the form below and write how we can help you?. We provide quick contact and comprehensive service.

Team Poolsystem.pl
Tomasz Tomkowicz

Pool Technology Specialist

Thank you for reading our article, if you have more questions or need more specialized help - write to me using the form.

Product Details

18 kW
Power supply
400V - 3 phases

About Pahlen

Oferuje sprzęt do małych basenów prywatnych jak i dużych obiektów użyteczności publicznej. Produkty wykonane są z brązu, kwasoodpornej stali nierdzewnej, tytanu i materiałów termoplastycznych, pierwszorzędnej jakości co daje gwarancję wyjątkowej żywotności i niezawodności.
