Pahlen Compact T 12kW titanium electric pool heater
The Pahlen Compact T electric pool water heater comes in the 3kW to 18kW power range:
- made of titanium
- designed for saltwater pools
- the heating element consists of special heating rods
The set includes: a thermostat for setting the desired temperature of the pool water from 0 to 45 degrees C, a safety thermostat, a lack of water sensor (pressure sensor).
It is important to protect the heating element from damage. Special attention should be paid to: high calcium content in the water, a large amount of disinfectants, poor electrical as well as plumbing connections.
- Optionally, a flow sensor can be installed in the heater or on the pipeline, for protection of the heater from switching on if there is no water flow.

Technical specifications of the Pahlen Compact T electric heater
Model | Rated Power | Energy consumption | Min. flow rate | Max flow rate | Max. pressure | Max temperature | Waterproofing class | ||||
230V, 1-phase. | 230V, 3-phase. | 400V, 3-phase. | with flow sensor | with pressure switch | with flow sensor | with pressure switch | |||||
3 kW | 2,7 - 3,5 kW | 13A | 8A | 5A | 90 l/min | 20 l/min (3-9 kW) 40 l/min (12-18 kW) | 300 l/min | 2,5 bara (2,5 Pa) | 4 bary (4 Pa) | 45°C | IP44 |
6 kW | 5,4 – 6,5 kW | 26A | 15A | 9A | |||||||
9 kW | 8,1 – 9,7 kW | - | 23A | 14A | |||||||
12 kW | 10,8 – 13 kW | - | 31A | 18A | |||||||
15 kW | 13,5 – 16,2 kW | - | 38A | 22A | |||||||
18 kW | 16,2 – 19,4 kW | - | 46A | 27A |

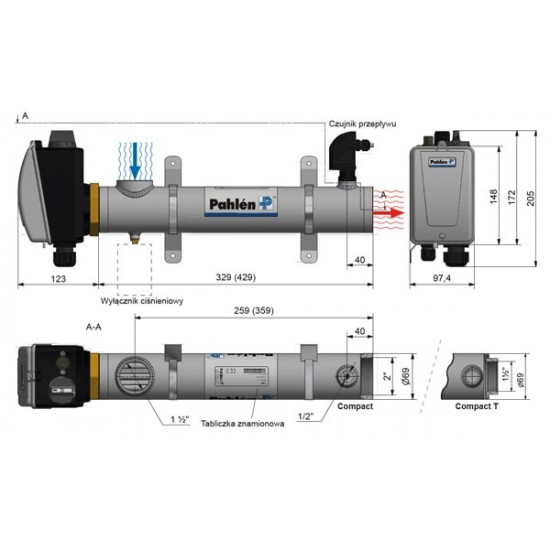

Dimensions of Pahlen Compact T electric heater

Dimensions in parentheses are for 12 kW, 15 kW and 18 kW heaters
