Automatic measuring and control station for swimming pools Bayrol PoolRelax Oxygen
- Designed for oxygen water treatment in private pools and spa tubs up to 150 m3
- It automatically measures and regulates the pH of the water and oxygen, maintaining both values at the desired level.
- It is possible to switch from chlorine to oxygen and vice versa during operation, but this requires the fitting of a suitable replacement kit.
- The station received a new housing and a slightly larger peristaltic pump compared to the previous version, while the tried-and-tested menus and operation remained unchanged.
- The PoolRelax oxygen station is equipped with a proportional controller that controls the pH and oxygen peristaltic pumps by means of the length of the dosing pulses, i.e. by varying the pump switch-on time. The station's menu makes it possible to set the relevant setpoints for pH and redox, a proportional range depending on the size of the pool, measurement value alarms (top/bottom), dosing time and many other parameters necessary to ensure precise and reliable dosing.
- The PoolRelax Oxygen station has two peristaltic pumps for dosing pH corrector and Oxygen, each with a capacity of 1.5 l/h at 1.3 bar.

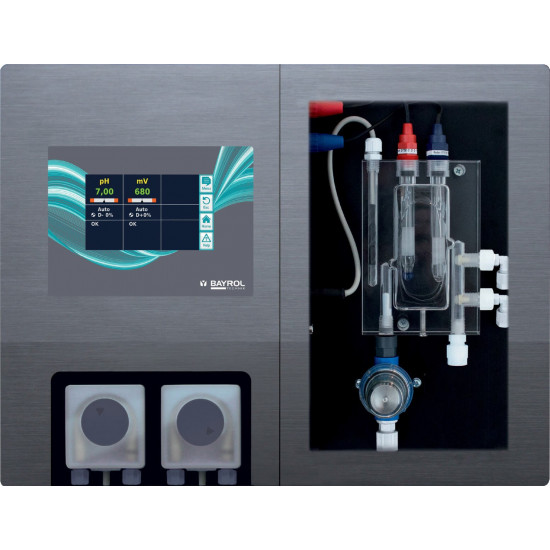

- The Bayrol PoolRelax station has a compact design with a small footprint for installation in very small spaces. The station's components are covered by a protective cover to prevent dirt and accidental damage. Made of acrylic, the measuring vessel is illuminated by a blue LED for easy monitoring of the water flow in low light conditions.
- The station is equipped with a large LCD screen which, together with a logical menu structure, ensures simple and intuitive operation. All indications and messages are clearly presented on the display.
- A power-saving mode switches off the display after 15 minutes.
- The station's processor records all relevant events such as switch-on/switch-off, calibrations, alarms, parameter changes or resets in a logbook with date and time. This makes it possible to analyse the workflow of the pool plant and any abnormalities that occur.
- The station is equipped with precision measuring systems with pH and oxygen potential measuring electrodes (PoolRelax Oxygen).
- A pre-filter is used as standard equipment and guarantees the flow of clean water through the measuring vessel.
- Additionally, a PoolConnect module can be purchased for PoolRelax stations, which allows full data exchange between the station and a mobile phone via text messages (SMS). As a result, it is possible to remotely read measurement values, alarms, delete alarms and modify station settings from anywhere using a mobile phone.
Technical data for Bayrol PoolRelax Oxygen stations
Power supply: | 110 - 240 V, 50/60 Hz, separate power supply for peristaltic pumps |
Power consumption: | 30 W |
Ambient temperature: | - 10° to + 60° C |
Station (board) dimensions: | 440 x 361 x 125 mm (width x height x depth) |
Indications: | High-resolution, monochrome four-line display with blue backlighting, automatic display switch-off function after 15 minutes to save energy |
Language setting: | Polish, German, English, French, Spanish, Italian, Russian, Slovak, Czech |
Flow control: | by means of an inductive sensor |
Types of alarms: | upper and lower measuring values, flow, container level, dosing time (regulation), regulation (dosing) delay, automatic dosing lock at critical alarms |
Protection class: | IP 54 |
Technical data of the pH measurement system
Measuring range: | 0 - 10.00 pH (temperature-compensated) |
Measurement accuracy: | maximum +/- 0.2% of the measurement range value |
Reading accuracy: | 0,01 pH |
Regulator type: | proportional, two-way control possible (pH-Minus/pH-Plus) |
Calibration: | one or two-point method |
Proportionality range: | can be set from 0% to 100% |
Adjustment parameters: | setpoint, alarm thresholds, maximum dosing (control) time, proportionality range, dead zone for two-way control, pulse (timing) time, minimum activation time of the dosing pump |
Pump control: | Voltage-free or relay output 230 V, max 2 A with modulation of the dosing pulse length (dosing time) or pulse frequency (for pulse pumps - max 240 pulses per minute), permanent indication of the current dosing quantity |
The pH electrode and its connection: | glass rod@ BNC connector |
Contents of the package

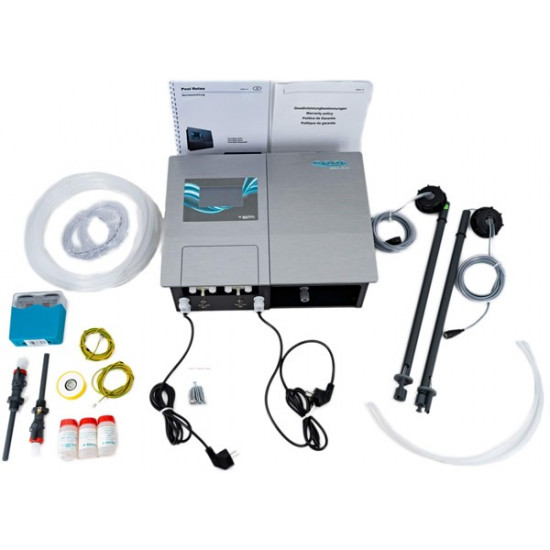

Each station is supplied in a cardboard box containing all the materials needed to assemble the station:
- station,
- pH and redox electrode (for PR Chlorine only),
- buffer solutions pH 7.0 and pH 4.0 and 650 mV (for PR Chlorine only),
- electrode cleaning fluid,
- 3/8" taps for tap water connection,
- measuring water pipes from PE 10x8 mm (2x2 m),
- ½" foot valves with filters and level sensors and ½" metering valves for each pump,
- PVC suction pipe 4x6 mm (2 m for each pump),
- PE discharge pipe 4x6 (2 m for each pump),
- fixing pins,
- operating manual.
