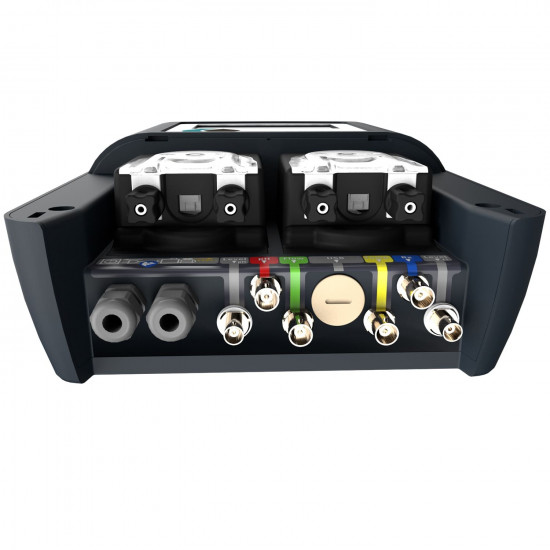

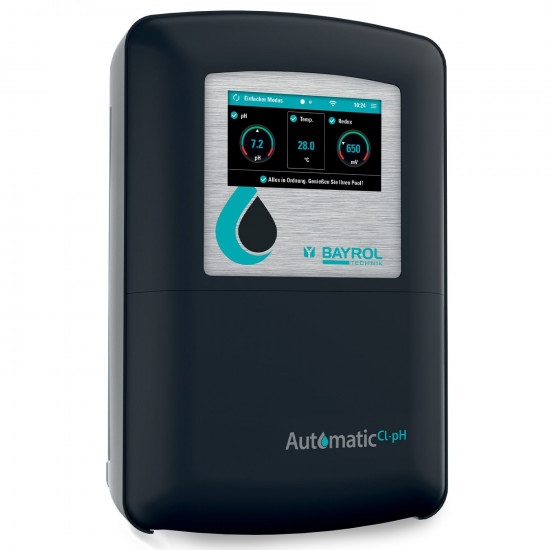

Chlorine and pH measuring and dosing station AUTOMATIC Cl-pH z WiFi
The fully automatic pool chemical dosing system ensures excellent water quality all year round. The cell design and Smart&Easy connector makes installation extremely simple. The entire system is efficient, intuitive and durable.
The dosing system measures and regulates the pH value and chlorine content by continuously dosing water care products as required. This ensures always disinfected water safe for bathing without the risk of chemical overdose.
Intuitive interface with WIFI
The large touchscreen enables comfortable operation and clearly displays all important information. The optimised user interface also enables quick and comprehensible commissioning of the system and ongoing operation during operation.
The integrated WiFi module enables convenient operation of the unit via the newly developed mobile app or the BAYROL web portal
Scheme of installation of the system
Although the technology used makes the unit easy to assemble, the manufacturer recommends that installation and commissioning of the station be carried out by an experienced installer. Carefully read the operating instructions for the unit to familiarise yourself with its operation, and pay particular attention to the regulations and safety instructions.
The dosing station is integrated into the end of the pool water circuit after the filter equipment and the pool heating system.
Transparent inline dosing and analysis chamber is an optional accessory
Device specifications
Display | 4.3" TFT colour touchscreen |
Adjustment | Adaptive proximity control |
Measurement of the pH value | Rod electrode with BNC connector |
Measuring range pH | 0 - 10,0 |
Measurement of redox values | Rod electrode with BNC connector |
Redox measuring range | 0 - 999 mV |
Length of electrode cable | 2 m |
Max. pressure | 1,5 bar |
Max. pump capacity | 2,4 l/h |
Power supply | 240 V~, 50/60 Hz |
Power consumption | Controller max. 10 W Dosing pumps max 2x 8 W |
Protection class | IP 65 |
Operating temperature | From 0 to 40 degrees Celsius |
Automatic station dimensions | 325 x 210 x 94 mm |
Weight | approx. 1,9 kg |
Guarantee | 24 months |
Contents of the package
1. automatic Cl-pH 2. Pressure hose, 2 pcs. 3. Suction hose, 2 pcs. 4. canister cap with hole for suction hose, 2 pcs. 5. saddle clamp Ø 50 mm, 4 pcs. 6. wall-mounting kit 7 Suction filter, 2 pcs. | 8. sensor holder, 2 pcs. 9. injection valve, 2 pcs. 10. pH sensor 11. Redox sensor 12. sensor cleaning solution 13. pH 7 buffer solution 14. redox buffer solution 465 mV 15. teflon tape |
How Automatic Cl-pH works
Presentation of Automatic products
