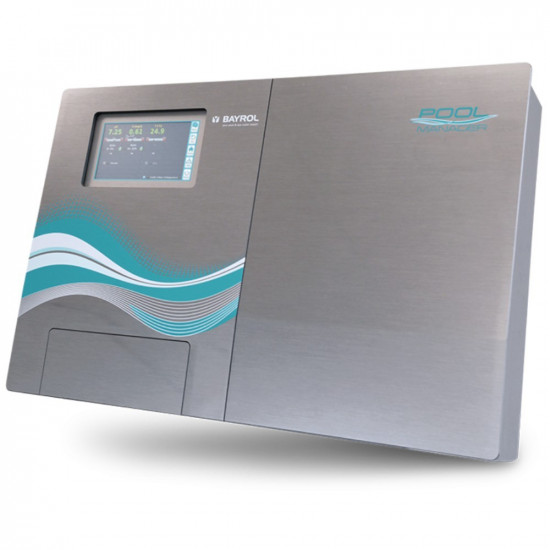

Automatic measuring and control station for swimming pools Bayrol PoolManager Chlor
- Designed for chlorine water treatment in private pools and spa tubs up to 150 m3
- PoolManager Chlorine is used for classic water care using chlorine. It automatically measures and regulates the pH of the water and the redox reduction-oxidation potential maintaining both values at the desired level.
- It is possible to switch from chlorine to oxygen and vice versa during operation, but this requires the fitting of a suitable replacement kit.
- The PoolManager Chlorine station is equipped with a proportional controller that controls the pH and chlorine peristaltic pumps by means of the length of the dosing pulses, i.e. by varying the pump switch-on time. The station's menu makes it possible to set the relevant setpoints for pH and redox, a proportional range depending on the size of the pool, measurement value alarms (top/bottom), dosing time and many other parameters necessary to ensure precise and reliable dosing.
- The PoolManager Chlorine station has two peristaltic pumps for dosing pH corrector and chlorine, each with a capacity of 0.9 l/h at 1 bar.

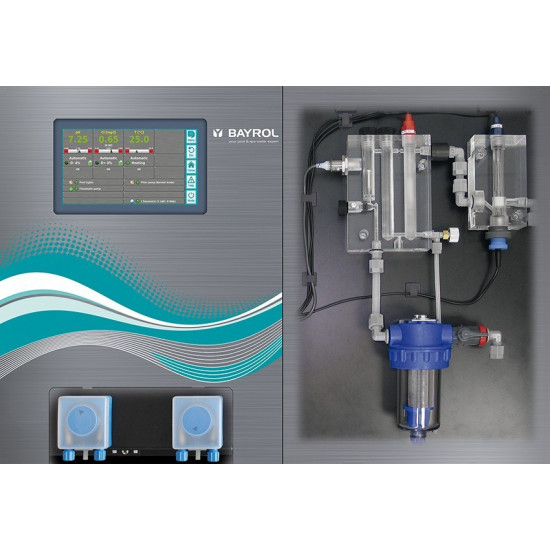

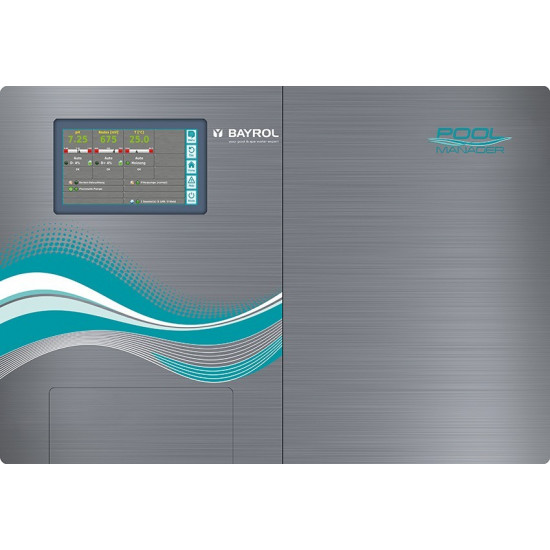

- The PoolManager station has a compact design with a small footprint for installation in very small rooms. The station's components are covered by a protective cover to prevent dirt and accidental damage. The measuring cell is illuminated with a blue LED for easy monitoring of water flow in low light conditions.
- The station is equipped with a large touchscreen which, together with a logical menu structure, ensures simple and intuitive operation. All indications and messages are clearly presented on the large 5.7" display. By lightly touching the screen surface with a finger, all menu items can be accessed and settings changed. Each menu item has a context-sensitive help text accessible via the Help button. In most cases, the help text is sufficient and referring to the operating instructions is unnecessary. A save mode switches off the display after a preset time..
- A logical menu structure on two levels (customer/user and service) ensures quick navigation and intuitive operation. When the station is switched on for the first time, the "First start-up" menu item is activated, which enables step-by-step entry of pool parameters and controller settings even by unskilled persons.
- The station's processor records all relevant events such as switch-on/switch-off, calibrations, alarms, parameter changes or resets in a logbook with date and time. This makes it possible to analyse the workflow of the pool plant and any abnormalities that occur.
- The Bayrol PoolManager station has two independent outputs of universal switches, which allow, after appropriate programming, time control (on/off) of other devices, such as the water circulation pump, coagulant pump, lighting or water attractions. This makes the use of additional controllers unnecessary.
- The PoolManager station has an open CAN-bus interface, which allows other devices compatible with this standard to be connected in the future. The station also has RS 232 and RS 485 interfaces, allowing multiple network variants to be realised, as well as communication with a PC.
- The station is equipped with precise measuring systems with pH and redox potential measuring electrodes (PoolManager Chlorine). A pre-filter is used as standard equipment and guarantees the flow of clean water through the measuring vessel.
Additional options to extend the functions of the installed station:
- The PM4comm communication software allows data transfer between the station and a computer equipped with the Windows operating system. As a result, it is possible to present all operating parameters and settings on the PC screen, change them and delete alarms. The software allows multiple stations to be controlled via a PC.
- The 0/4 - 20 mA current outputs enable direct connection of the station to a recorder and other devices after purchase of the converter. It is possible to output all measurement values.
- PoolConnect is a module allowing full data exchange between the PoolManager station and a mobile phone via text messages (SMS). As a result, it is possible to remotely read measurement values, alarms, delete alarms and modify station settings from anywhere using a mobile phone.
- Each station can be supplemented at any time with a Flockmatic coagulant peristaltic pump with a capacity of 10 ml/h. This ensures that even the smallest dirt particles are retained on the filter and the pool water is crystal clear
Technical data for Bayrol PoolManager Chlorine stations
Power supply: | 230 V/50 Hz |
Power consumption: | 30 W |
Ambient temperature: | - 10° do + 60° C |
Station (board) dimensions: | 640 x 535 x 180 mm (szerokość x wysokość x głębokość) |
Indications | wyświetlacz dotykowy 5,7”, monochromatyczny z niebieskim podświetleniem, funkcja automatycznego wyłączania ekranu w celu oszczędzania energii |
Language setting: | polski, niemiecki, angielski, francuski, hiszpański, włoski, rosyjski, słowacki, czeski |
Flow control: | za pomocą czujnika indukcyjnego OMRON, dodatkowa blokada za pomocą czujnika ciśnienia lub z zasilania pompy obiegowej |
Types of alarms: | górny i dolny wartości pomiarowych, przepływu, poziomu w pojemnikach, czasu dozowania (regulacji), zwłoka włączania (regulacji), automatyczna blokada dozowania przy alarmach krytycznych |
Interfaces: | CAN-bus, RS 232, RS 485 |
Technical data of the pH measurement system
Measuring range: | 0 – 10,00 pH |
Reading accuracy: | 0,01 pH |
Regulator type: | proportional, two-way control possible (pH-Minus/pH-Plus) |
Calibration: | one or two-point method |
Proportionality range: | can be set from 0% to 100% |
Adjustment parameters: | setpoint, alarm thresholds, maximum dosing (control) time, proportionality range, dead zone for two-way control, pulse (timing) time, minimum activation time of the dosing pump |
Operating mode: | auto, manual, off |
Pump control: | relay output 230 VAC, max. 1A with modulation of the dosing pulse length (dosing time), permanent indication of the current dosing quantity |
Measurement output: | with galvanic separator |
Electrode p and connection: | glass rod@ BNC connector |
Technical data of the redox measurement system
Measurement range: | 0 – 999 mV |
Reading accuracy: | 1 mV |
Regulator type: | proportional |
Type of regulation: | one-sided regulation of the redox potential (liquid chlorine dosing) |
Calibration: | single-point method |
Proportionality range: | can be set from 0% to 100% |
Adjustment parameters: | setpoint, alarm thresholds, maximum dosing (control) time, proportionality range, minimum activation time of the dosing pump |
Operating mode: | auto, manual, off |
Pump control: | relay output 230 VAC, max. 1A with modulation of the dosing pulse length (dosing time), permanent indication of the current dosing quantity |
Redox probe including connection: | glass rod@ BNC connector |
Technical data for pH and chlorine peristaltic pumps
Capacity: | two pumps, 0.9 l/h each for pH and chlorine |
Counter-pressure: | maximum 1 bar |
Suction height: | 1 m |
Power consumption: | 10 W |
Dosing hose: | Novopren |
Wężyk dozujący: | IP 40 |
Technical data of the temperature measuring system
Measuring range: | 0° – 99,9° C |
Reading accuracy: | 0,01° C |
Temperature indication: | constants with the possibility of calibration used for temperature-compensated dosing of active oxygen, the possibility of setting alarm limit values |
