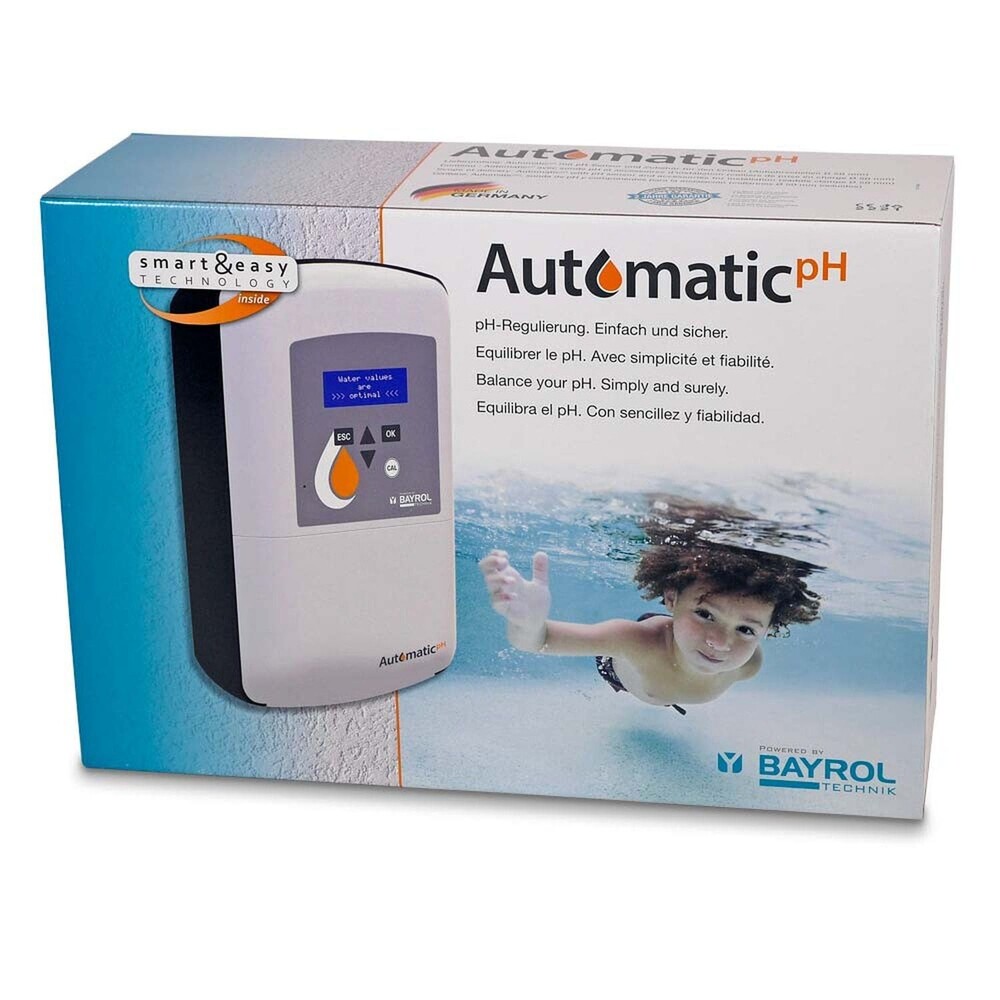

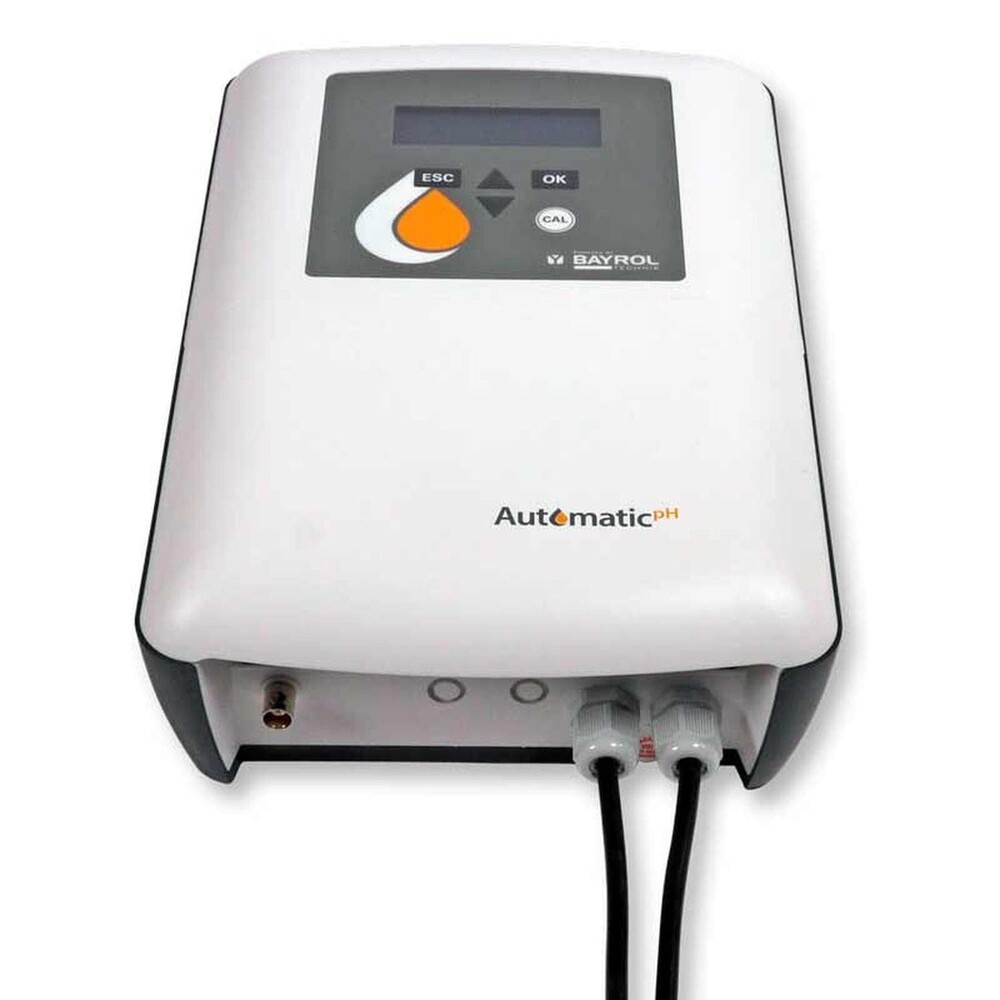

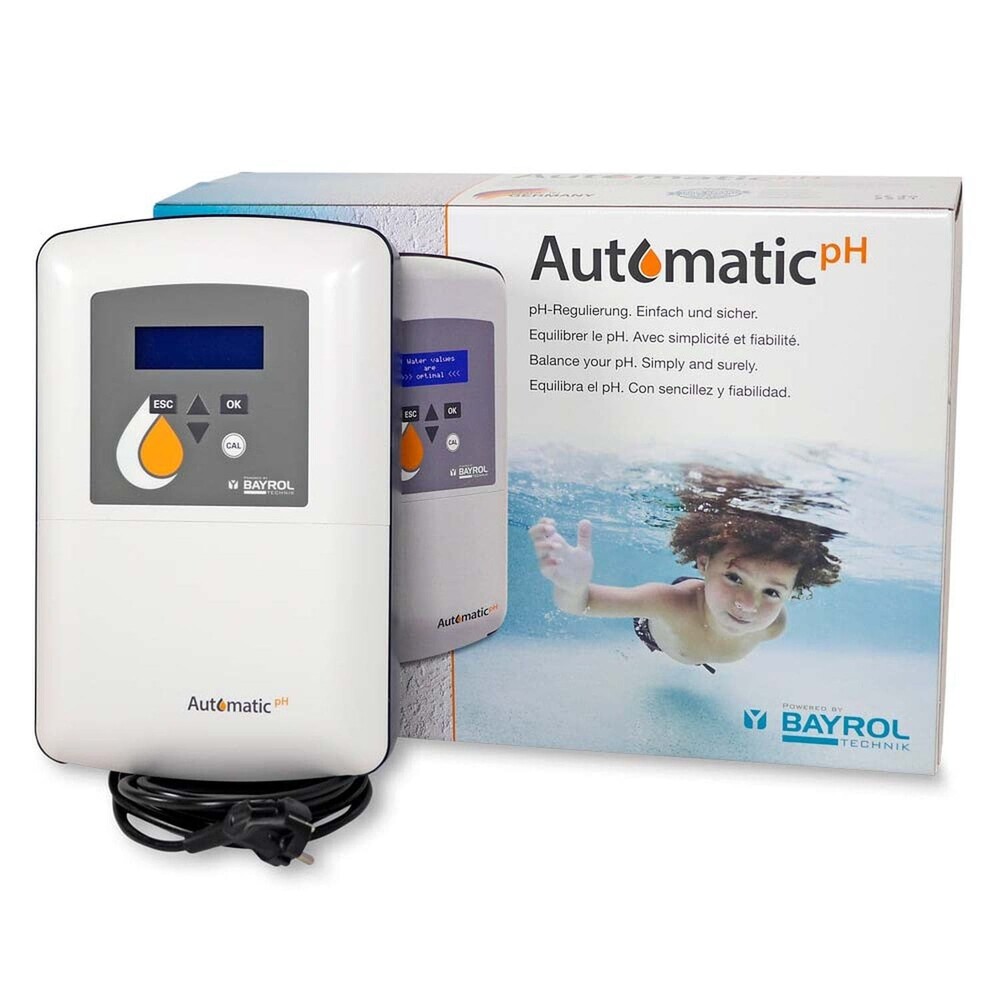

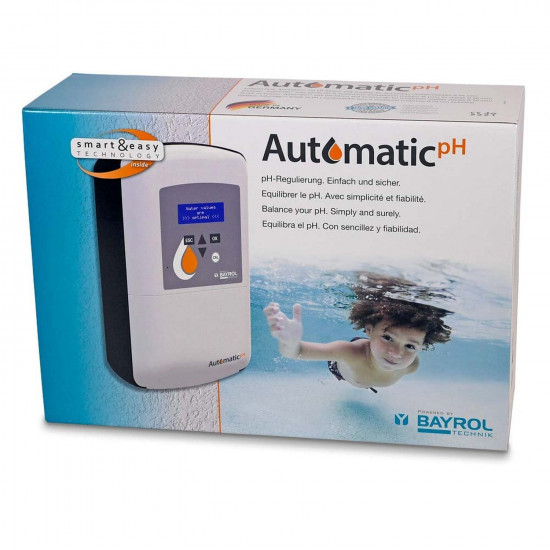

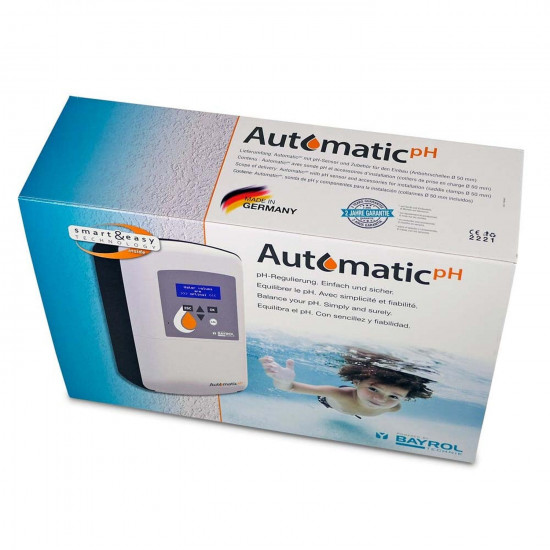

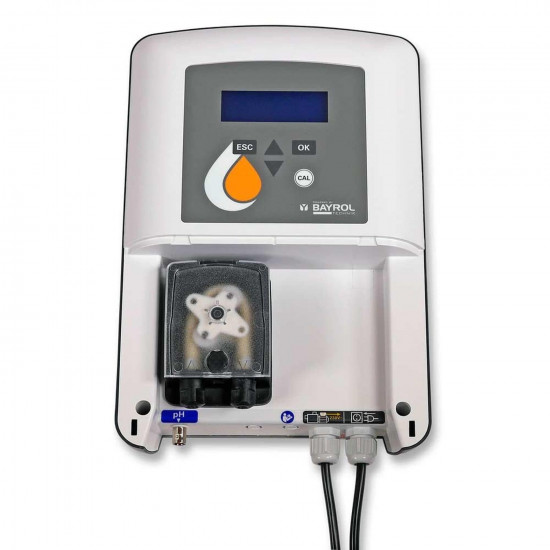

pH measuring and control station AUTOMATIC
Automatic pH is an automatic control device designed for the treatment of water in private swimming pools with a volume of up to 90 m3. Automatic pH reliably measures and regulates the pH value of the pool water.
The integrated Smart&Easy technology allows for quick installation and easy in-house operation. It supports both the initial start-up of the station and subsequent ongoing operation by actively guiding the user through all the necessary settings. Pressing the appropriate button opens the pH electrode calibration menu and guides you step by step through the individual steps.
Scheme of installation of the system
Thanks to the integrated components included in the kit, the installation of the Automatic pH station in the circulation system of a swimming pool with 50 mm PVC pipe size is very simple and requires no special qualifications.
Device specifications
Type of pool | All with PVC installation |
Volume of the pool | Max. 90 m3 |
Dosage | pH Minus or pH Plus |
Display | LCD with blue backlighting |
Menu language | Menu in 6 languages (FR, EN, ES, DE, IT, RUS) |
Type of adjustment | Propocional |
Measurement range | 0,0 - 10 pH |
Measurement accuracy | 0,1 |
Desired pH value | 7.2 - adjustable |
Electrode type | Rod electrode in the measuring vessel |
Calibration of electrodes | Menu-driven 1-point calibration |
Electrode mounting position | Vertical in the measuring vessel |
Max. pump pressure | 1,5 bar |
Max. pump flow | 1,5 l/h |
Guarantee | 24 months |
Contents of the package
1. Automatic pH station | 8. injection valve 9. pH electrode 10. canister cap with suction hose opening 11. electrode cleaning fluid 12. pH 7.0 buffer solution 13. teflon tape |
How Automatic pH works
Station installation
