Pool Heat exchanger up to 55m3 B180 53kW HEXONIC
Pool Heat exchanger up to 55m3 B180 53kW HEXONIC
Pool Heat exchanger up to 55m3 B180 53kW HEXONIC
Pool Heat exchanger up to 55m3 B180 53kW HEXONIC

Pool Heat exchanger up to 55m3 B180 53kW HEXONIC

0170-0004
wysyłka 24h
Kurier: 18 PLN
zł2,239.00
Tax included

https://poolsystem.pl/modules/iqithtmlandbanners/uploads/images/63e5f4b43508c.jpg

Description

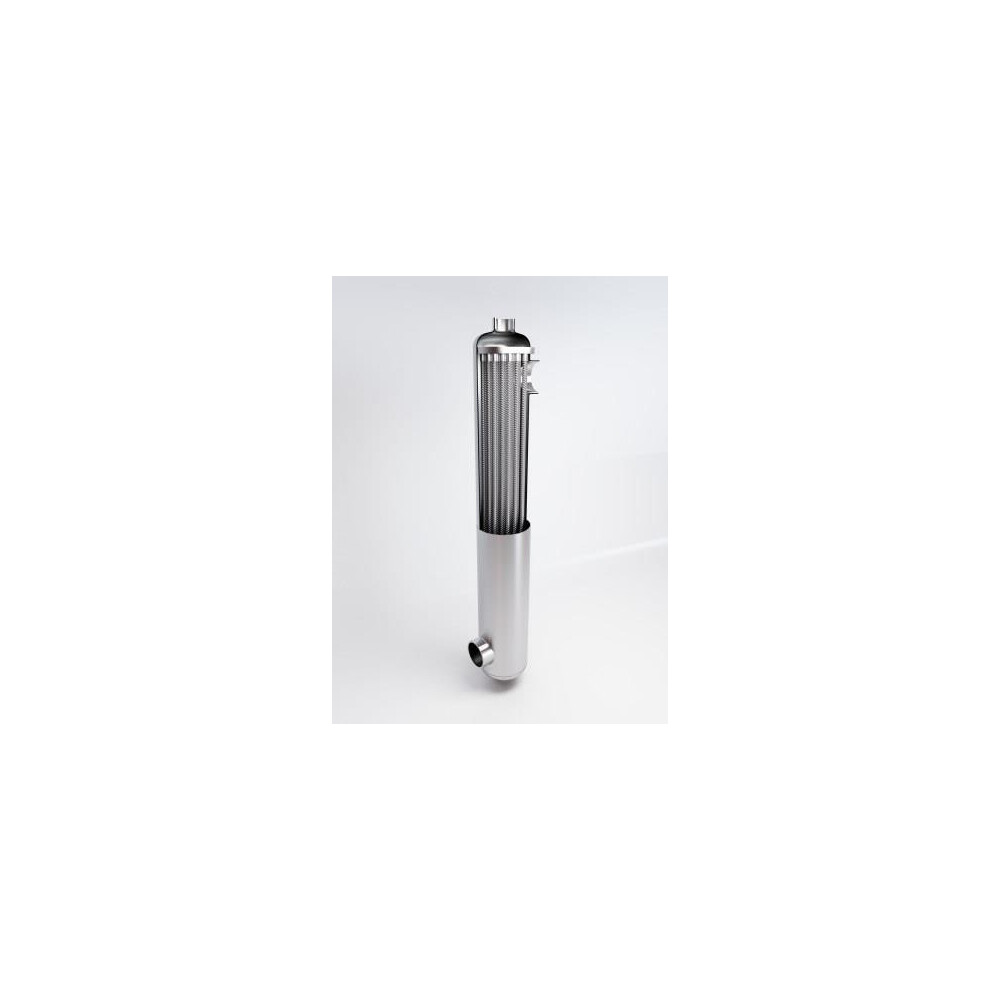

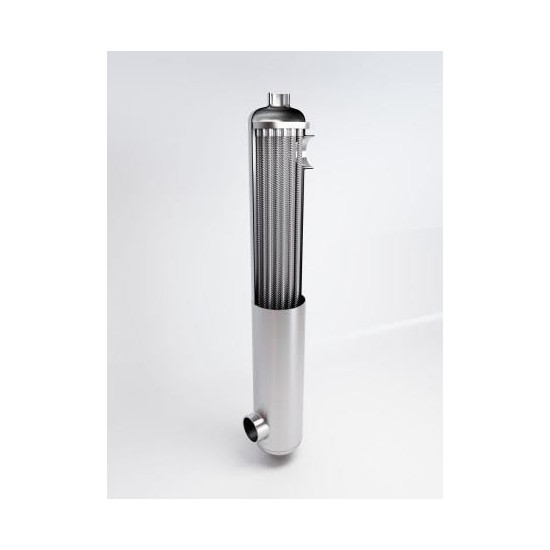

HEXONIC B 180 pool heat exchanger

HEXONIC heat exchanger model B is a shell-and-tube heat exchanger equipped with straight corrugated tubes. It is used in installations where there are high flows of the medium compared to the thermal power transferred. It is a proven solution for swimming pool, solar or small oil preheating systems.

The use of corrugated tubes intensifies heat transfer and increases the possibility of self-cleaning.

  • Power: 53 kW
  • Heat exchange area: 0.38 m2
  • Hot water: 30 l/min (flow)@ 0.4 kPa (pressure drop)
  • Cold water: 210 l/min (flow)@ 7.5 kPa (pressure drop)
  • Thread: 1 1/2" (D)@ 1" (E)
  • Designed for swimming pools up to 60 m3

Technical data of the HEXONIC B180 exchanger

Operating parameters max. pressure / max. temp.16bar / 203°C
Tube diameter [mm]8
Heat exchange area [m2]0,38
Volume of tube side [l]1,21
Volume of jacket side [l]1,38
Weight [kg]4,6
Type of execution316L stainless steel
Type connectionsfemale thread
Dimensions of connectionsG1” G1 1/2"
Dimensions [mm]A:143,6 / B:193 / C:379 / Dz:101,6

Dimensions of the HEXONIC B180 heat exchanger

K1, K4K2, K3
B180G1”G1 1/2”

Need help?

If you have not found the answer to your inquiry, please use the form below and write how we can help you?. We provide quick contact and comprehensive service.

Team Poolsystem.pl
Tomasz Tomkowicz

Pool Technology Specialist

Thank you for reading our article, if you have more questions or need more specialized help - write to me using the form.

Product Details

Pool size
up to 55 m3
Power
53 kW
