Titanium Pool Heat exchanger up to 150m3 TI500 145kW HEXONIC
Titanium Pool Heat exchanger up to 150m3 TI500 145kW HEXONIC
Titanium Pool Heat exchanger up to 150m3 TI500 145kW HEXONIC
Titanium Pool Heat exchanger up to 150m3 TI500 145kW HEXONIC

Titanium Pool Heat exchanger up to 150m3 TI500 145kW HEXONIC

0172-0021
wysyłka 24h
Darmowa wysyłka
zł5,779.00
Tax included

https://poolsystem.pl/modules/iqithtmlandbanners/uploads/images/63e5f4b43508c.jpg

Description

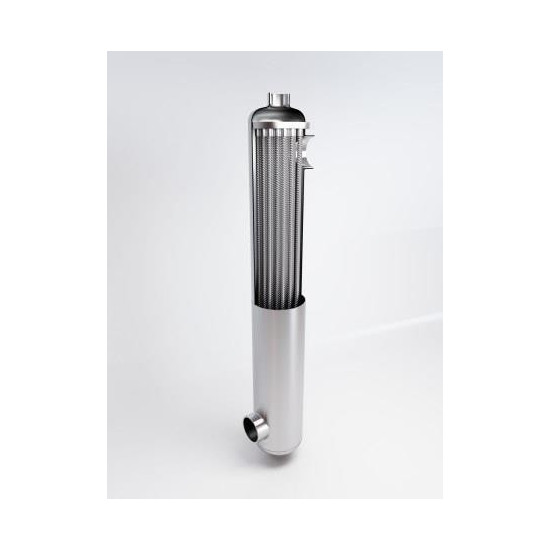

HEXONIC TI 500 pool heat exchanger

HEXONIC heat exchanger model TI is a shell and tube heat exchanger made of titanium, equipped with straight corrugated tubes. It is used in installations where there are high flows of the medium compared to the thermal power transferred. It is a proven solution for swimming pool, solar or small oil preheating systems.

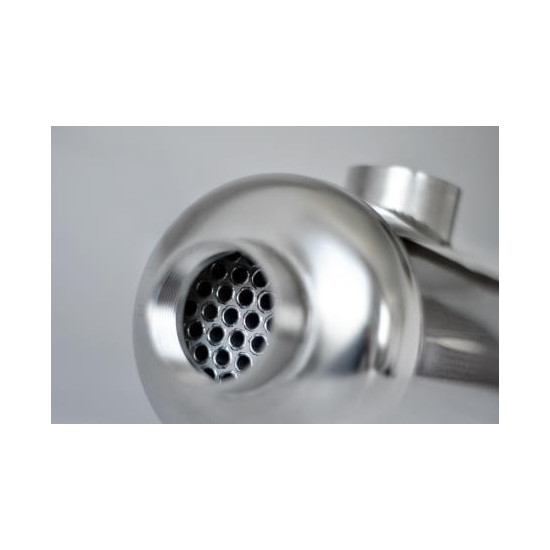

The use of corrugated pipes intensifies heat transfer and increases self-cleaning capabilities. Versions made entirely of titanium (type T), in addition to all the advantages of type B exchangers, are additionally resistant to the most aggressive media such as salt, often used in heat exchange.

  • Power: 146 kW
  • Heat transfer area: 1.37 m2
  • Hot water: 55 l/min (flow)@ 2.7 kPa (pressure drop)
  • Cold water: 360 l/min (flow)@ 57.3 kPa (pressure drop)
  • Threads: 2" (D)@ 1" (E)
  • For swimming pools up to a volume of 150 m3 of water

Technical data of the Hexonic TI500 exchanger

Operating parameters max. pressure / max. temp.16bar / 203°C
Tube diameter [mm]8
Heat exchange area [m2]1,37
Volume of tube side [l]2,76
Volume of jacket side [l]4,81
Weight [kg]12,4
Type of executiontitan
Type connectionsG 1" G 2"
Dimensions of connectionsG1 1/2"
Dimensions [mm]A:143,6 / B:884 / C:1103 / Dz:101,6

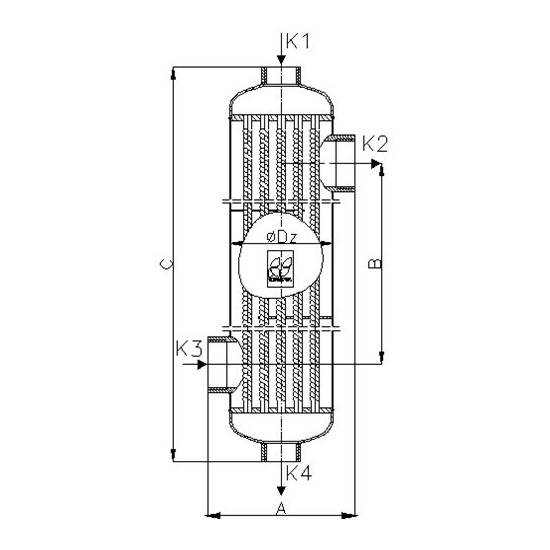

Dimensions of the Hexonic TI500 heat exchanger

K1, K4K2, K3
TI500G 1 1/2”G 1 1/2”
