Titanium Pool Heat exchanger up to 70m3 TI250 73kW HEXONIC
Titanium Pool Heat exchanger up to 70m3 TI250 73kW HEXONIC
Titanium Pool Heat exchanger up to 70m3 TI250 73kW HEXONIC
Titanium Pool Heat exchanger up to 70m3 TI250 73kW HEXONIC

Titanium Pool Heat exchanger up to 70m3 TI250 73kW HEXONIC

0172-0019
wysyłka 24h
Darmowa wysyłka
zł4,679.00
Tax included

https://poolsystem.pl/modules/iqithtmlandbanners/uploads/images/63e5f4b43508c.jpg

Description

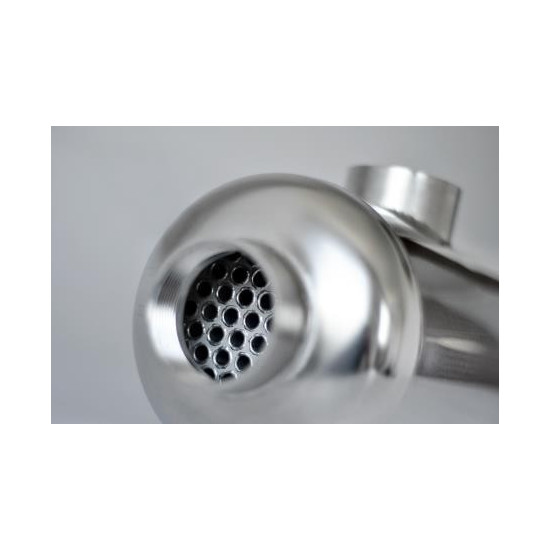

HEXONIC TI 250 pool heat exchanger

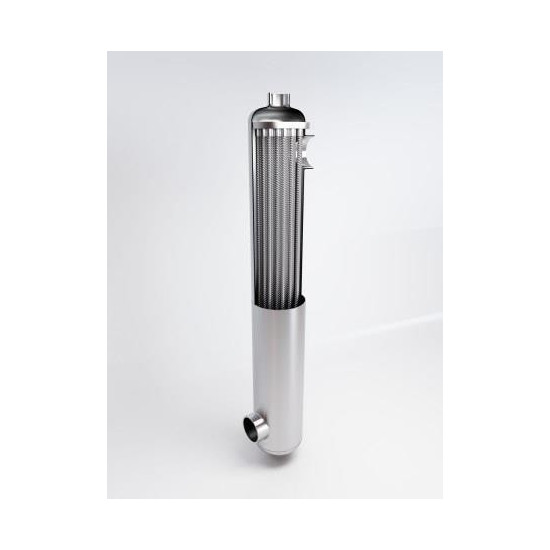

HEXONIC heat exchanger model TI is a shell and tube heat exchanger made of titanium, equipped with straight corrugated tubes. It is used in installations where there are high flows of the medium compared to the thermal power transferred. It is a proven solution for swimming pool, solar or small oil preheating systems.

The use of corrugated pipes intensifies heat transfer and increases self-cleaning capabilities. Versions made entirely of titanium (type T), in addition to all the advantages of type B exchangers, are additionally resistant to the most aggressive media such as salt, often used in heat exchange.

  • Power: 73 kW
  • Heat transfer area: 0.55 m2
  • Hot water: 35 l/min (flow)@ 0.8 kPa (pressure drop)
  • Cold water: 270 l/min (flow)@ 16.2 kPa (pressure drop)
  • Threads: 1 1/2" (D)@ 1" (E)
  • For swimming pools up to a volume of 70 m3 of water

Technical data of the Hexonic TI250 exchanger

Operating parameters max. pressure / max. temp.16bar / 203°C
Tube diameter [mm]8
Heat exchange area [m2]0,34
Volume of tube side [l]0,94
Volume of jacket side [l]1,19
Weight [kg]2,2
Type of executiontitan
Type connectionsT-thread external (K1,K4), internal (K2,K3)
Dimensions of connectionsG1 1/2"
Dimensions [mm]A:140 / B:170 / C:357 / Dz:101,6

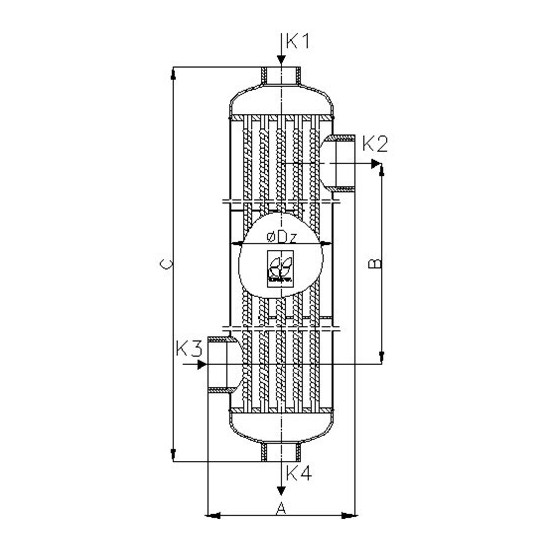

Dimensions of the Hexonic TI250 heat exchanger

K1, K4K2, K3
TI250G 1 1/2”G 1 1/2”

Need help?

If you have not found the answer to your inquiry, please use the form below and write how we can help you?. We provide quick contact and comprehensive service.

Team Poolsystem.pl
Tomasz Tomkowicz

Pool Technology Specialist

Thank you for reading our article, if you have more questions or need more specialized help - write to me using the form.

Product Details

Pool size
up to 70 m3
Power
73 kW

About Hexonic

Firma SECESPOL jest polskim producentem wymienników ciepła od ponad 25 lat obecnym na międzynarodowych rynkach.

Zaawansowana technologia przemysłowa oraz własna produkcja urządzeń gwarantują wyroby najwyższej klasy. Doświadczony zespół konstruktorów stale pracuje nad projektowaniem coraz nowocześniejszych i bardziej wydajnych urządzeń przystosowując je do wymagań klientów.

SECESPOL obecny jest na całym świecie za pośrednictwem spółek córek: SECESPOL CANADA, SECESPOL DEUTSCHLAND, SECESPOL CZECHY, SECESPOL ASIA oraz ponad 200 przedstawicielstw handlowych w kraju i za granicą.

SECESPOL stawia na innowacje i rozwój, o czym świadczą liczne międzynarodowe nagrody oraz patenty. Najwyższe światowe standardy jakości potwierdzają przyznane certyfikaty i dopuszczenia: ASME (U&UM), PED 97/23/WE; GOST; China ML; 3-A.
