Pool heat exchangers REV 500

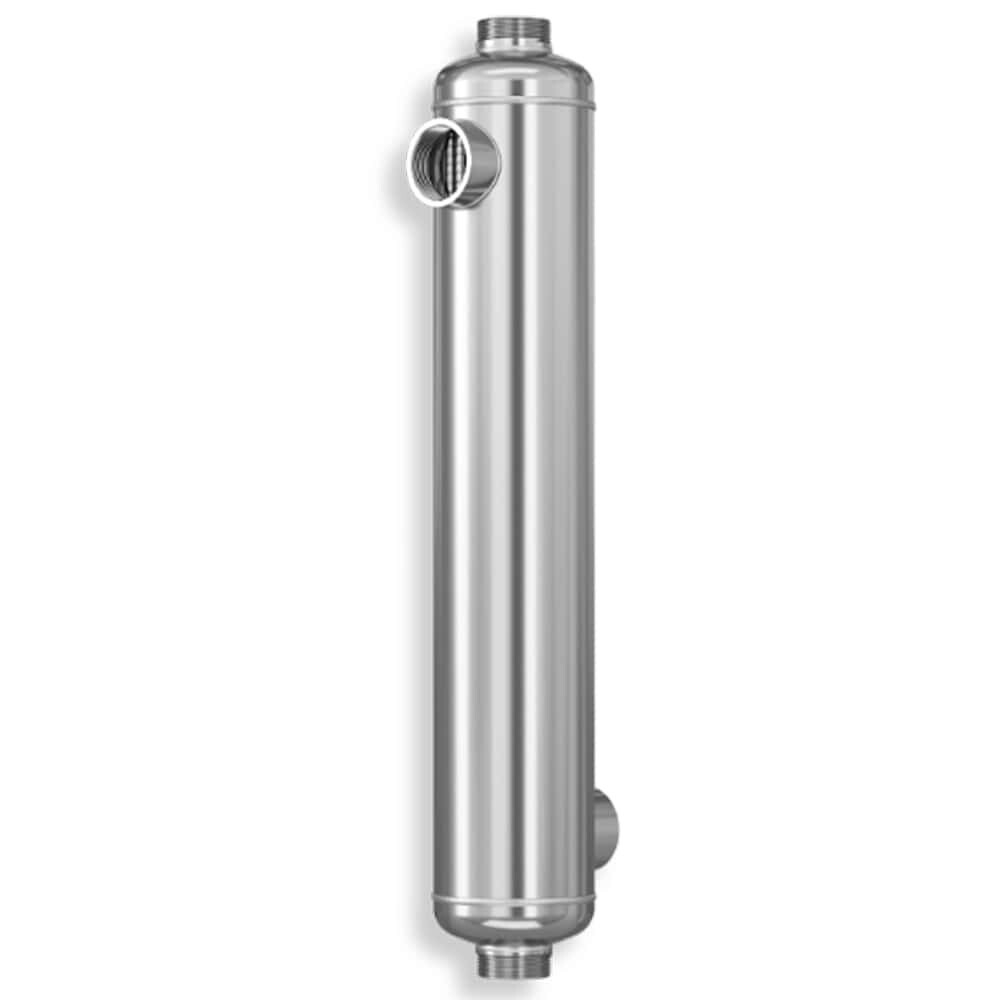

REV heat exchangers are intended for use mainly in swimming pool installations. The main priority in their design was to improve heat exchange conditions. This was achieved by using the 3-pass design of the tube bundle, which results in better utilization of source thermal power. Additionally, thanks to the short path of pool water (heated medium) through the exchanger, the flow speed remains high.
Corrugated tubes increase flow turbulence, which further intensifies heat transfer. REV heat exchangers are made in two material versions – stainless steel or titanium. REV works perfectly with heat pumps, solar panels, but also standard heat sources, e.g. gas-fired boilers.
Unique 3-pass tube bundle
Allows for better utilization of source thermal power and achieving perfect heat exchange conditions

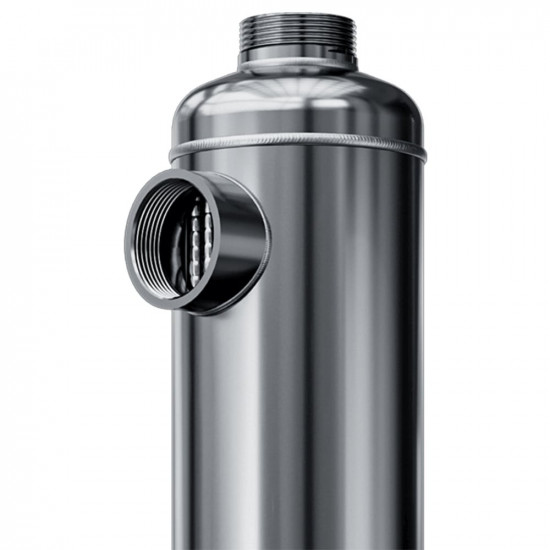

Stainless steel make
Appropriate for pools with treated water
Resistant to swimming pool chemicals
Resistant to aggressive substances in pool water, such as fluorine and chlorine
Corrugated tubes
Cause turbulent flow, which intensifies heat exchange and hinders sediment accumulation
Low pressure drop
Heat exchanger has low flow pressure drop on shell (pool)
Flexible work
Perfect for operating with heat pumps and solar panels
How does the REV exchanger work
The heating medium passes three times through the tubes, which significantly improves heat exchange conditions, as hot medium remains longer in the exchanger. The corrugated tubes cause turbulent flow, which intensifies heat exchange and reduces sediment formation.
Technical data

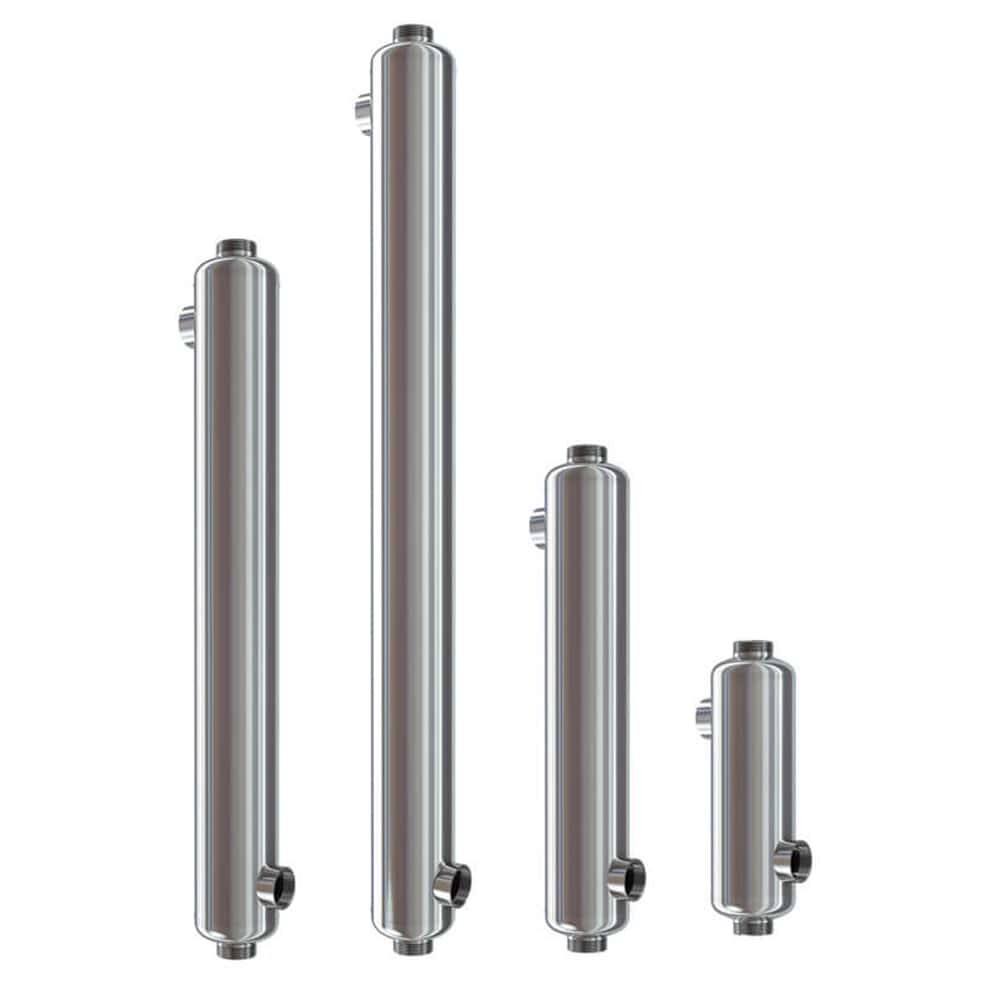

Type | Size | Heat exchange area | Tube diameter | Weight | Tube side capacity | Shell side capacity | |||
A [mm] | B [mm] | C [mm] | Dz [mm] | m2 | mm | kg | L | L | |
REV250S | 140 | 170 | 353 | 101,6 | 0,29 | 8 | 3,8 | 0,81 | 1,26 |
REV350S | 140 | 270 | 453 | 101,6 | 0,41 | 8 | 4,8 | 0,99 | 1,76 |
REV500S | 140 | 420 | 603 | 101,6 | 0,59 | 8 | 6,3 | 1,27 | 2,53 |
REV750S | 140 | 670 | 853 | 101,6 | 0,89 | 8 | 8,7 | 1,73 | 3,77 |
REV1000S | 140 | 920 | 1103 | 101,6 | 1,18 | 8 | 11,1 | 2,19 | 5,03 |

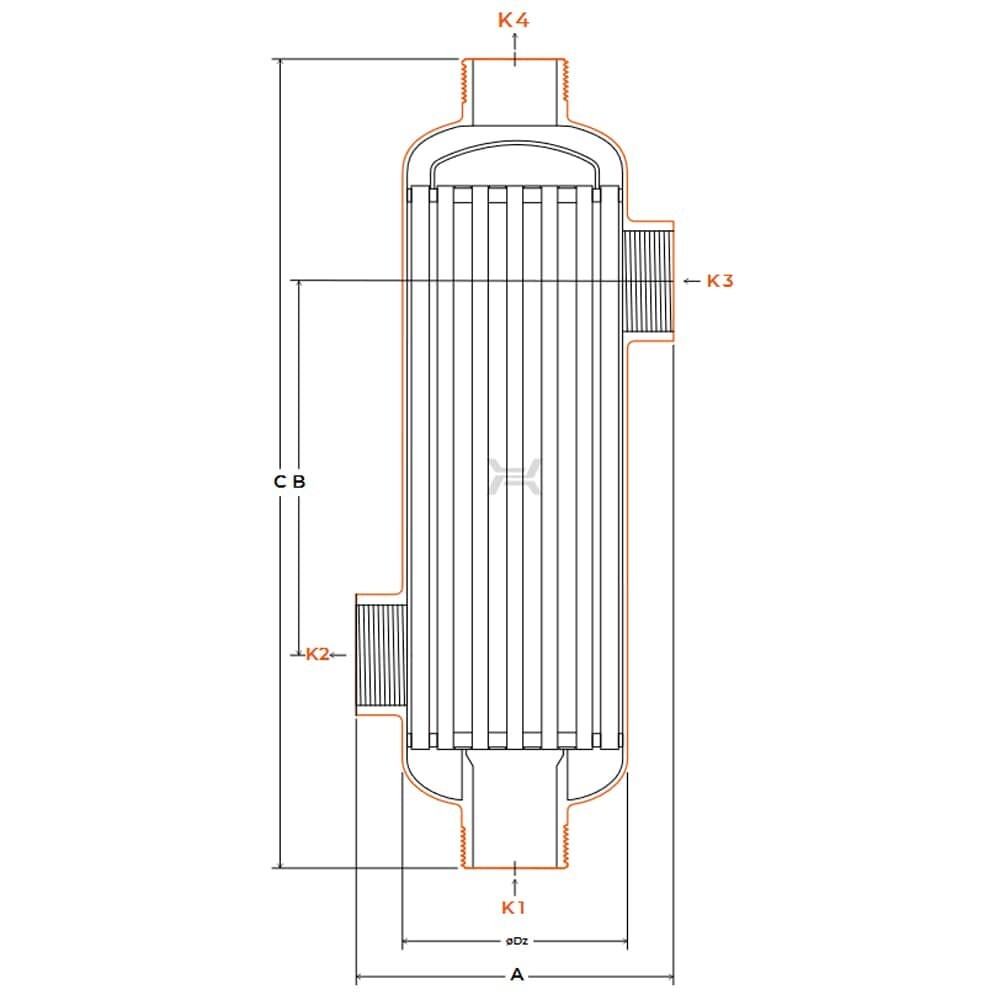

K 1 ⁄ K 4 ― inlet ⁄ outlet of heat source - male thread 1 1⁄2"
K 3 ⁄ K 2 ― swimming pool water inlet ⁄ outlet - female thread 1 1⁄2"
Max. heat load
Heat source temperature inlet | Pool water temperature outlet | REV250S | REV350S | REV500S | REV750S | REV1000S |
40℃ | 32℃ | 11 kW | 17 kW | 22 kW | 32 kW | 37 kW |
30℃ | 14 kW | 20 kW | 27 kW | 40 KW | 46 kW | |
50℃ | 32℃ | 26 kW | 38 kW | 50 kW | 72 kW | 83 kW |
30℃ | 29 kW | 42 kW | 55 kW | 79 kW | 92 kW | |
60℃ | 36℃ | 37 kW | 52 kW | 68 kW | 96 kW | 110 kW |
38℃ | 34 kW | 48 kW | 63 kW | 88 kW | 105 kW | |
MINIMUM FLOW RATE | ||||||
Pool water | Flow | 10 m3/h | 10 m3/h | 12 m3/h | 13 m3/h | 15 m3/h |
Heat source | 3 m3/h | 3,5 m3/h | 3,5 m3/h | 4 m3/h | 4 m3/h | |
POOL VOLUME | ||||||
min. / max. pool size | 40-70 m3 | 60-110 m3 | 80-120 m3 | 110-160 m3 | 150-200 m3 |
